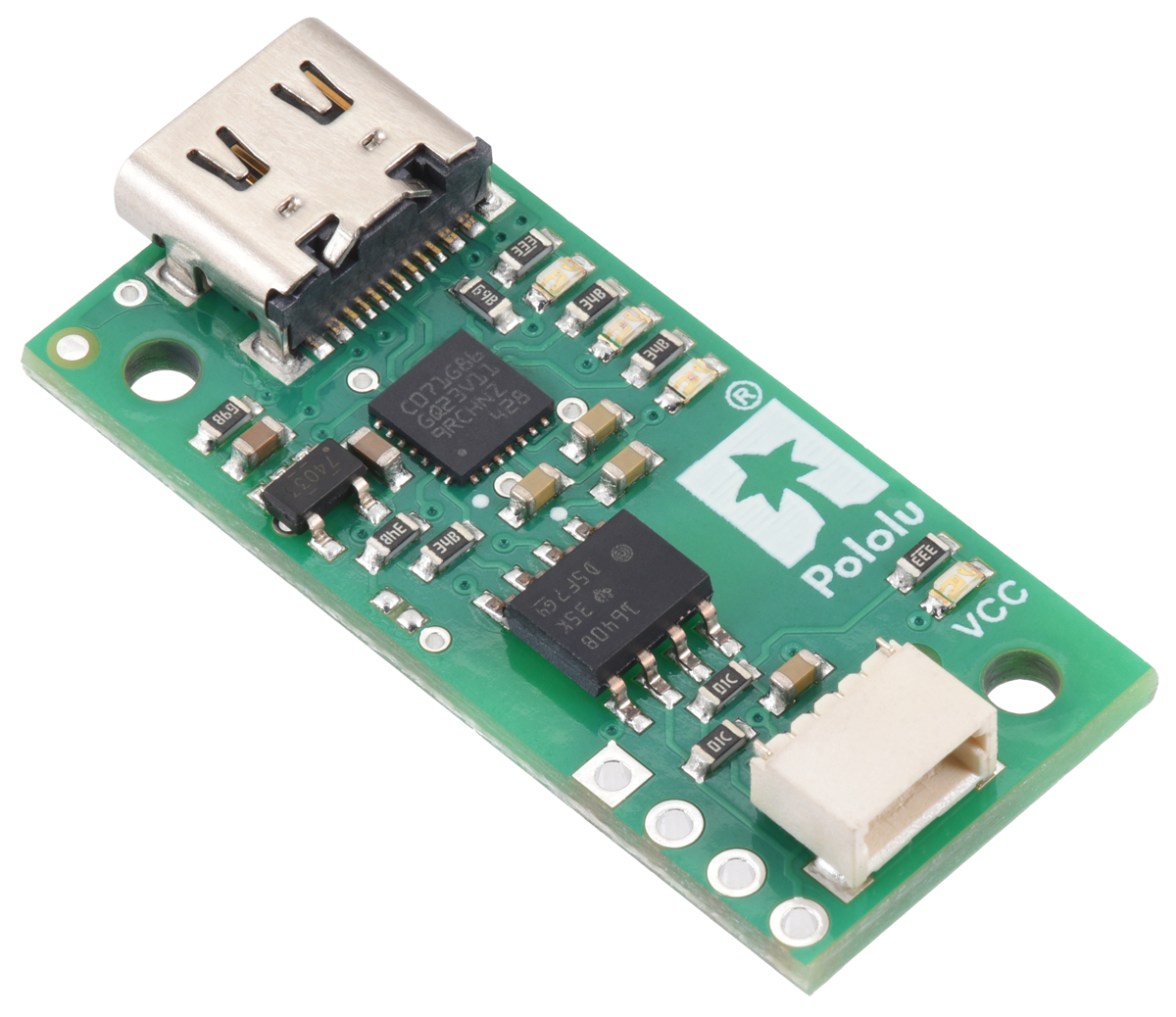

Pololu Isolated USB-to-I²C Adapter

This USB-to-I²C adapter functions as a bridge between I²C devices and a PC or other USB host, enabling the USB host to serve as an I²C controller and communicate with target devices on the I²C bus. It supports bidirectional communication with clock stretching and I²C clock speeds beyond 1000 kHz.

The adapter provides full galvanic isolation between the USB and I²C sides, which prevents unexpected current flow between the USB host and the I²C bus and protects the USB host from damaging voltages on the I²C bus (the adapter would be damaged under such conditions, but those voltages would not be able to propagate through to the USB side).

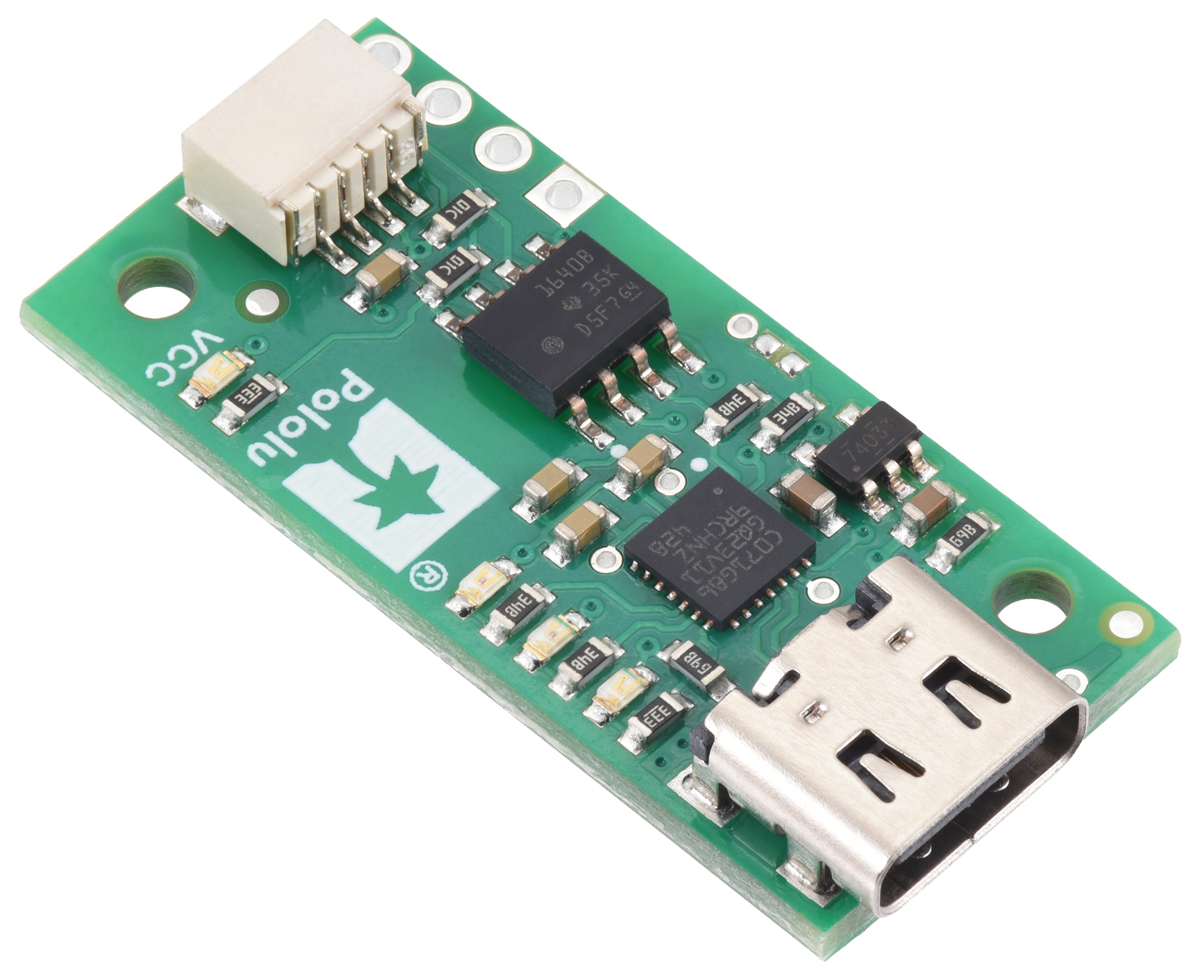

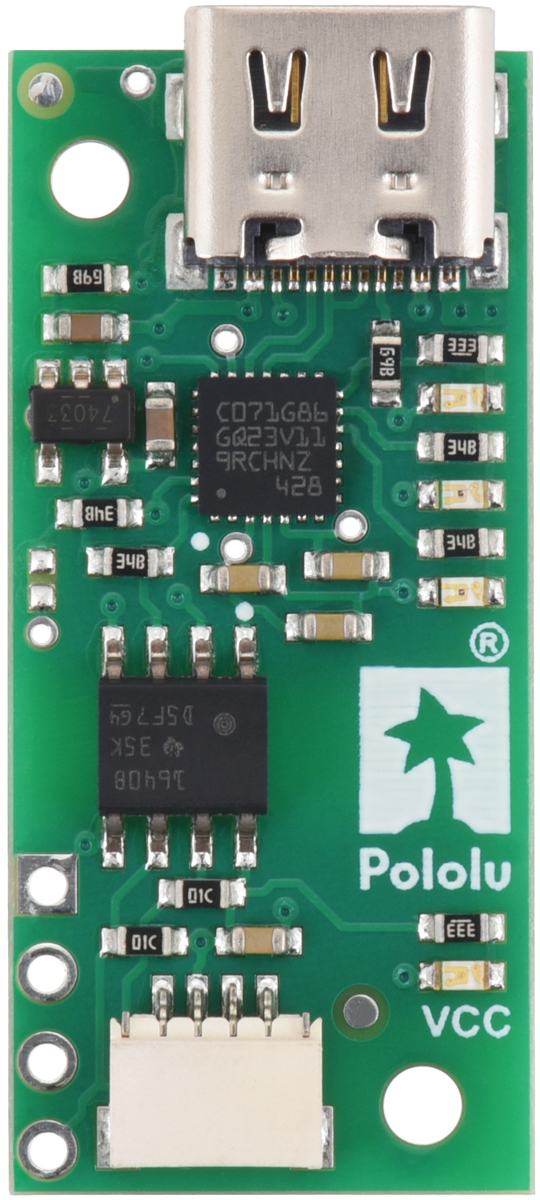

The module features a USB Type-C connector. On the USB side, the adapter acts as a virtual serial port (CDC ACM), so it is recognized by major operating systems (e.g. Windows 10 and later, Linux, and macOS) without requiring any driver installation. This means the adapter can be used with any programming environment that allows writing and reading binary data from a serial port (see the user’s guide for documentation on the communication protocol). We provide a Python library for the adapter to make it easy to get started in Python, and the firmware for the adapter’s STM32C071G8 microcontroller is open source for those who want to understand better how it works or customize the behavior.

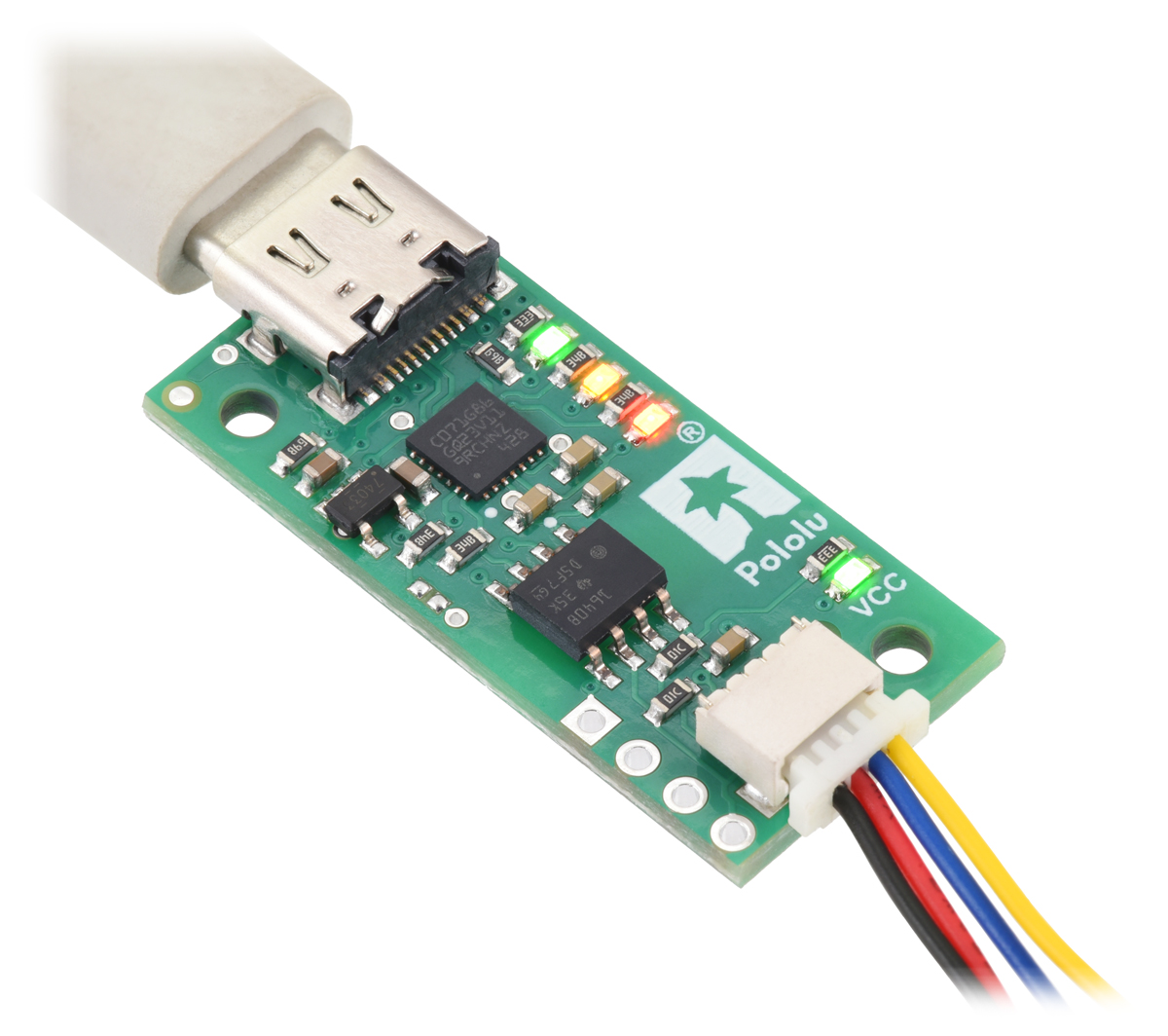

The I²C side features a JST SH-style 4-pin connector that works with our 4-pin JST SH-style cables and is compatible with SparkFun’s Qwiic and Adafruit’s STEMMA QT. It also brings the four I²C pins out to 0.1″-pitch through-holes that are compatible with standard 0.1″ male headers and female headers.

Note: This adapter does not deliver USB power to the I²C side and instead requires target power to be supplied separately; an alternative adapter version is available that delivers isolated power to the target.

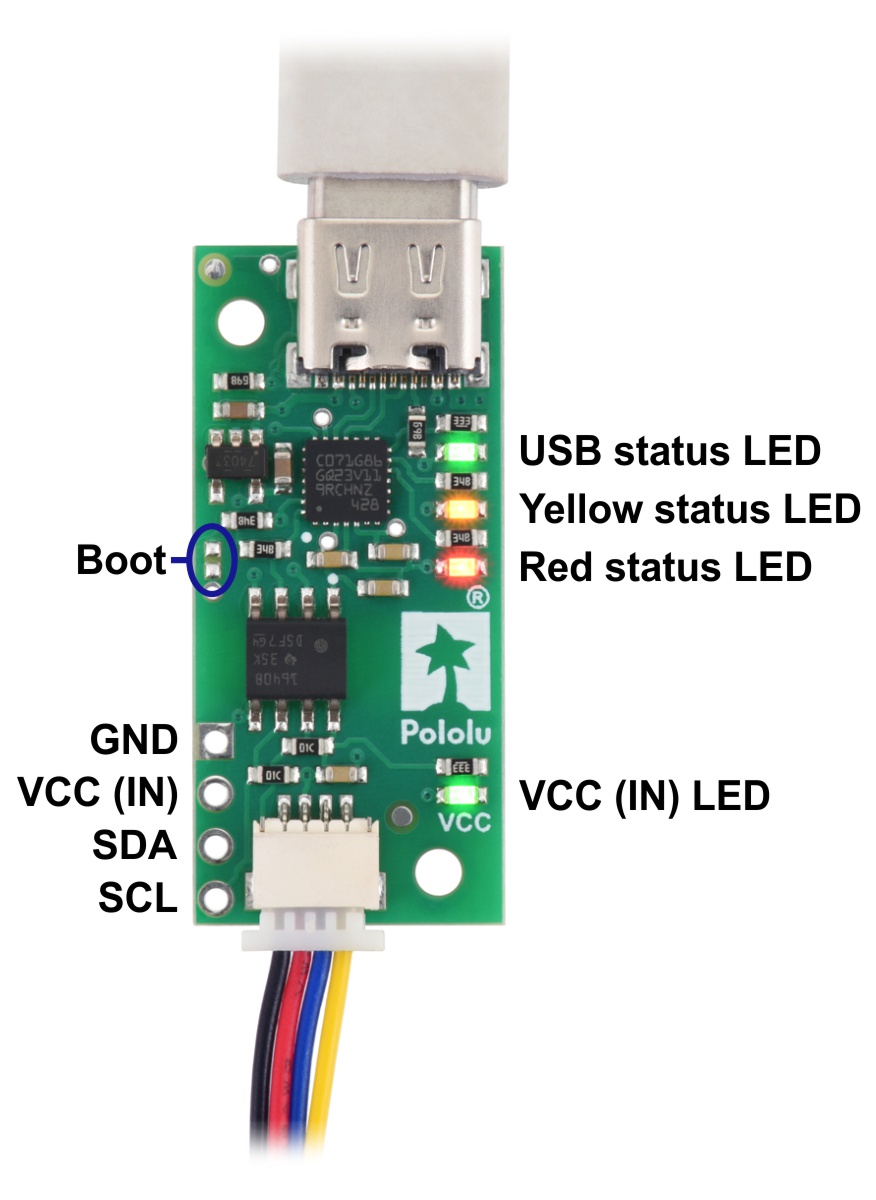

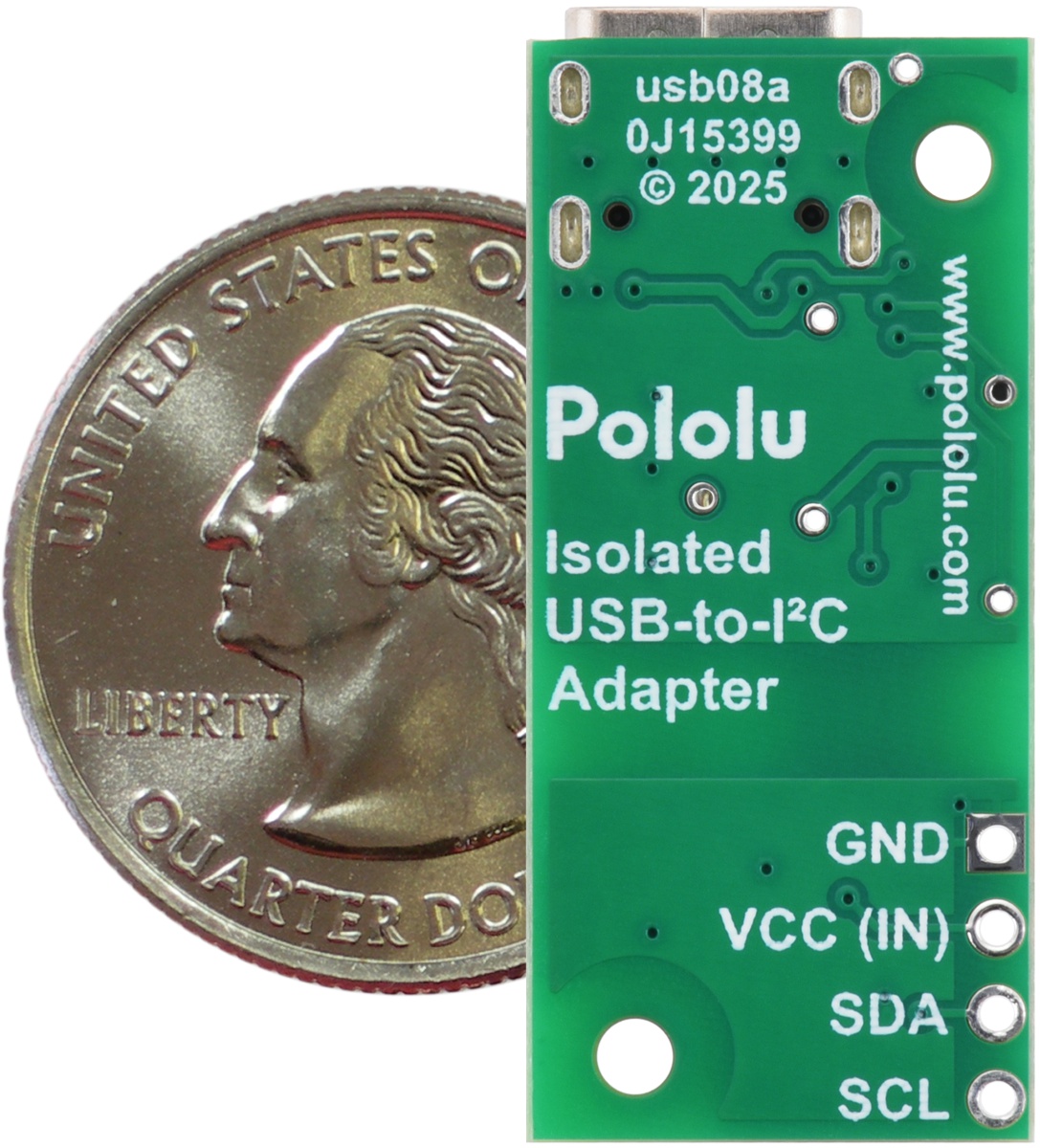

Connections





Pin	Cable color	Function
1	Black	I²C ground (GND); this pin is NOT connected to USB GND
2	Red	I²C input voltage (VCC); user must supply 2.25 V to 5.5 V across this pin and GND
3	Blue	I²C data line (SDA)
4	Yellow	I²C clock line (SCL)

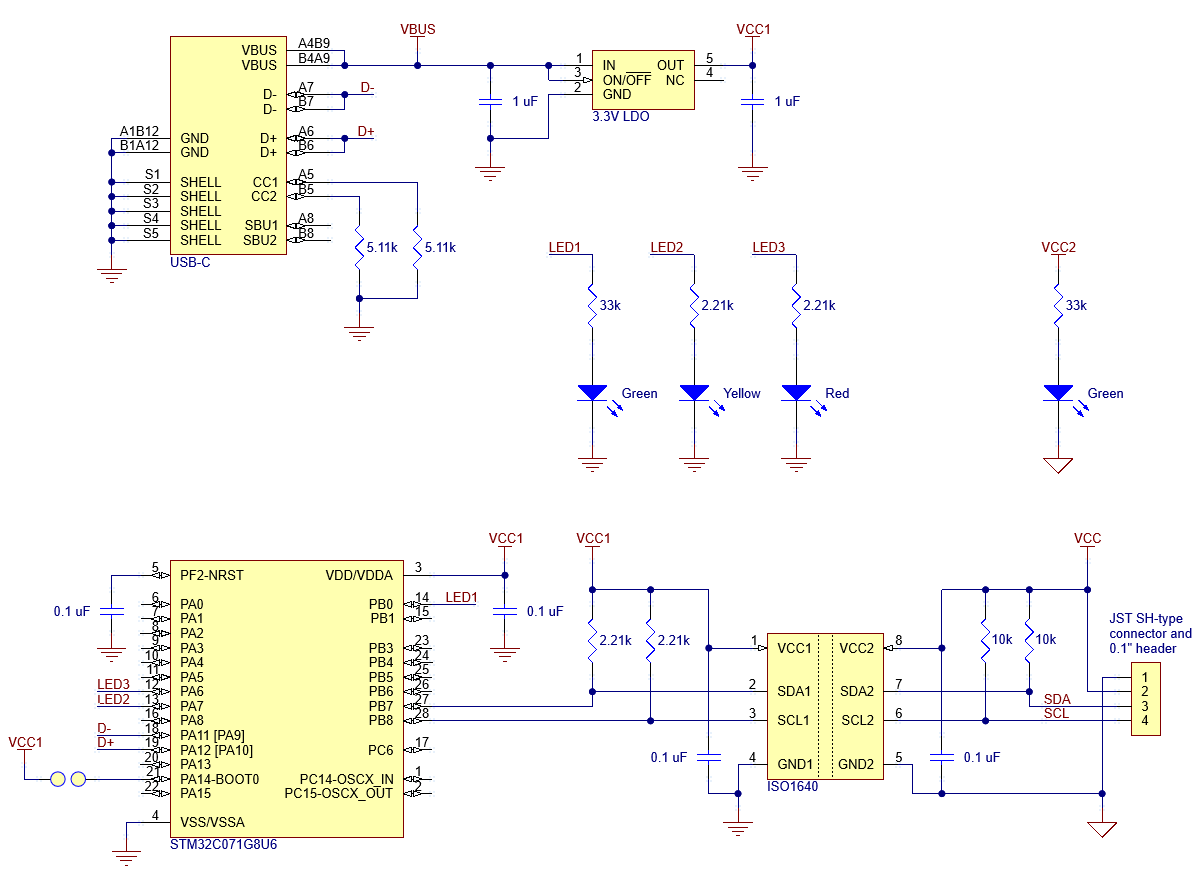

Schematic diagram

Schematic diagram of the Pololu Isolated USB-to-I²C Adapter.
