CT220RMV-HS5 Contactless Current Sensor Carrier ±15mT/150G

We are offering these breakout boards with support from Allegro Microsystems as an easy way to use or evaluate their CT220 tunneling magnetoresistance (TMR), contactless current sensors; we therefore recommend careful reading of the CT220 datasheet (2MB pdf) before using this product. The following list details some of the sensors’ key features:

• Contactless current sensing measures the magnetic field of current flowing through nearby conductor
  • Based on Allegro’s patented XtremeSense™ TMR (tunneling magnetoresistance) technology
  • Does not require breaking the circuit to insert the sensor in series with the current path
  • Inherently high electrical isolation
• Analog output voltage proportional to magnetic field can be converted into an accurate current measurement (with calibration)
  • High linearity and resolution
  • Stable performance over temperature
• Bidirectional (works in AC or DC systems)
• Multiple versions available with different ranges and sensitivities: ±1.5 mT, ±15 mT
• FLAG output indicates when field is above 90% or below 10% of full range
• Typical 20 µs response time
• On-board RC filter for reduced noise with 30 kHz bandwidth
• Operating temperature range of −40 °C to 125 °C

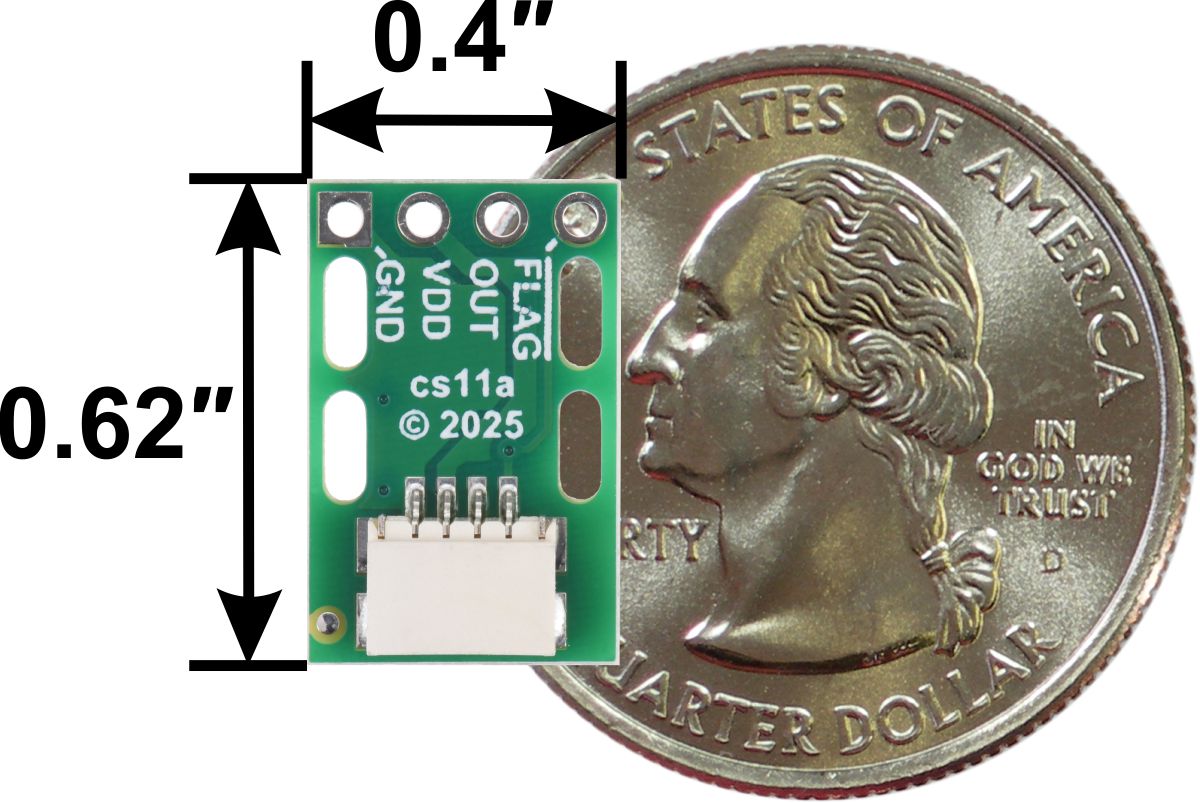

• Compact 0.4″ × 0.62″ board with slots for attaching to current-carrying wire
• Connection options: JST SH-style 4-pin connector (works with our 4-pin JST SH-style cables) or 0.1″-pitch pins

Details for item #5355

CT220RMV-HS5 Contactless Current Sensor Carrier ±15mT/150G.

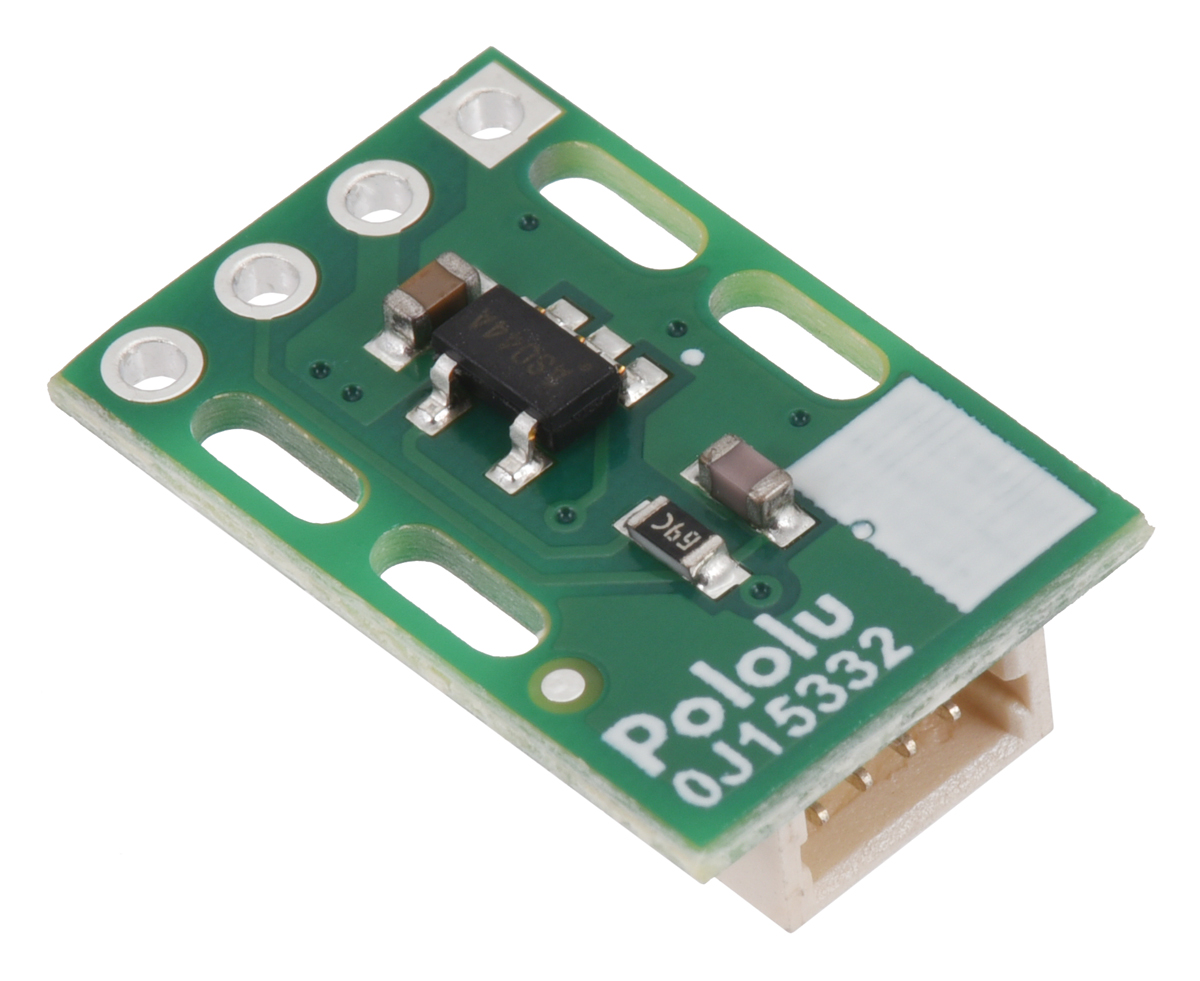

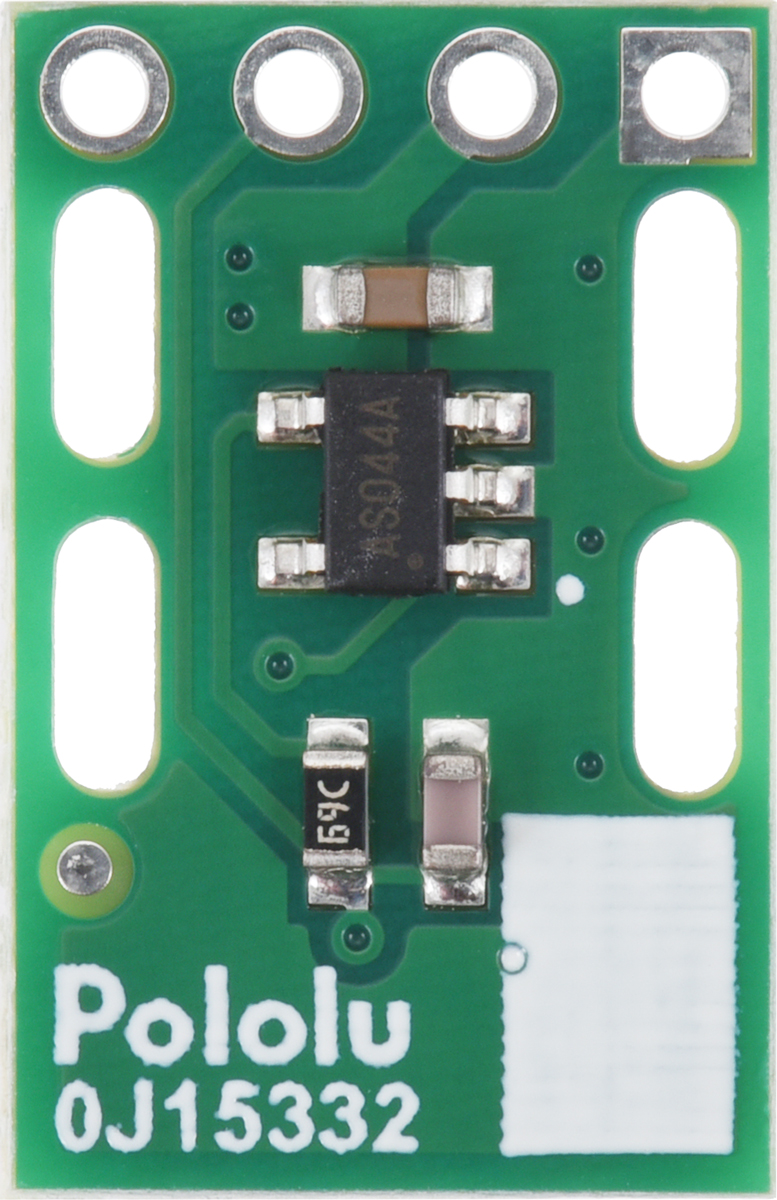

This carrier board features the CT220RMV-HS5, which has a magnetic field range of ±15 mT (±150 G). Its output sensitivity is 150 mV/mT when VDD is 5 V (or 99 mV/mT when VDD is 3.3 V). This version can be visually distinguished from the other versions by a marking that starts with AS printed on the sensor IC, as shown in the picture above (the silkscreen also has a blank white box that can be used for adding customized identifying markings).

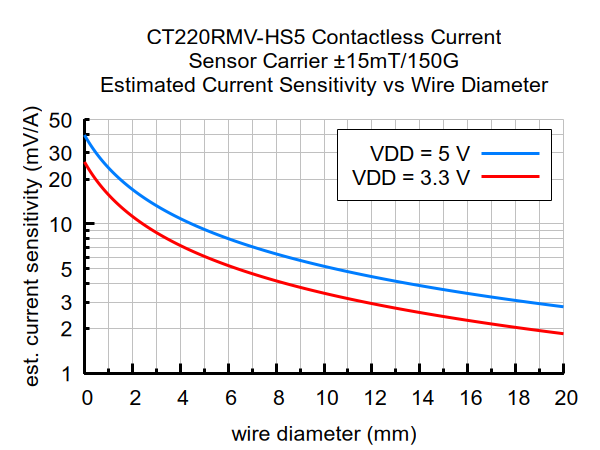

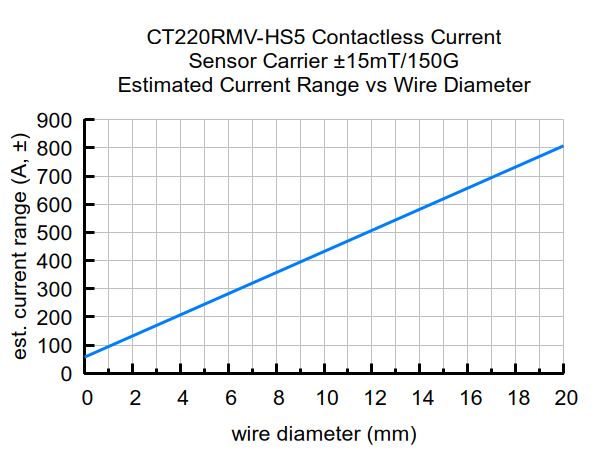

The sensor’s current range and current sensitivity depend on its distance from the conductor, along with other parameters like the conductor’s geometry and angle relative to the board. When the board is tied to a round wire as pictured below, the overall diameter of the wire (with insulation) will be the main factor, and these graphs can help you estimate the sensor’s range and sensitivity for wires of different thicknesses. However, you should calibrate the sensor in your particular setup for best results (see “Converting the sensor output into a current reading” below).

Using the sensor

This CT220 carrier board is designed to measure a current running parallel to the long axis of the board, which generates a magnetic field forming concentric circles around the current conductor. Two pairs of slots along the sides of the board provide a good way to attach the board to a wire with small zip ties (cable ties) or similar fasteners.

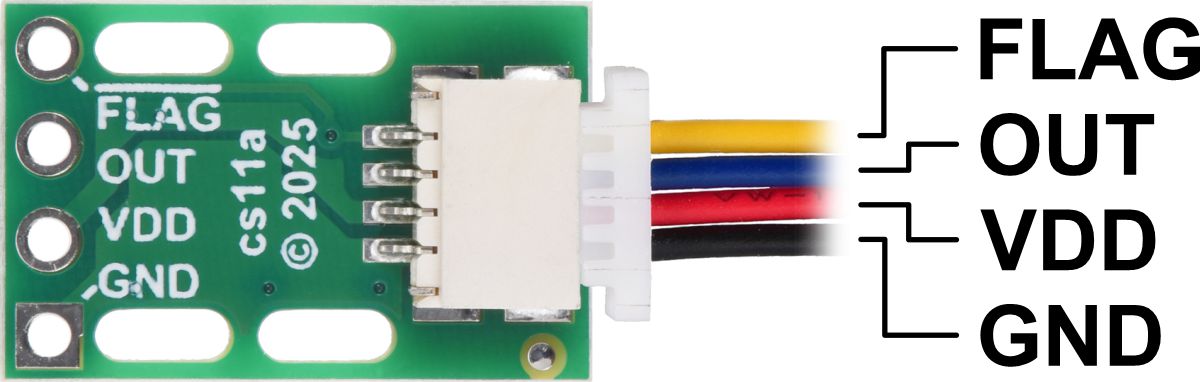

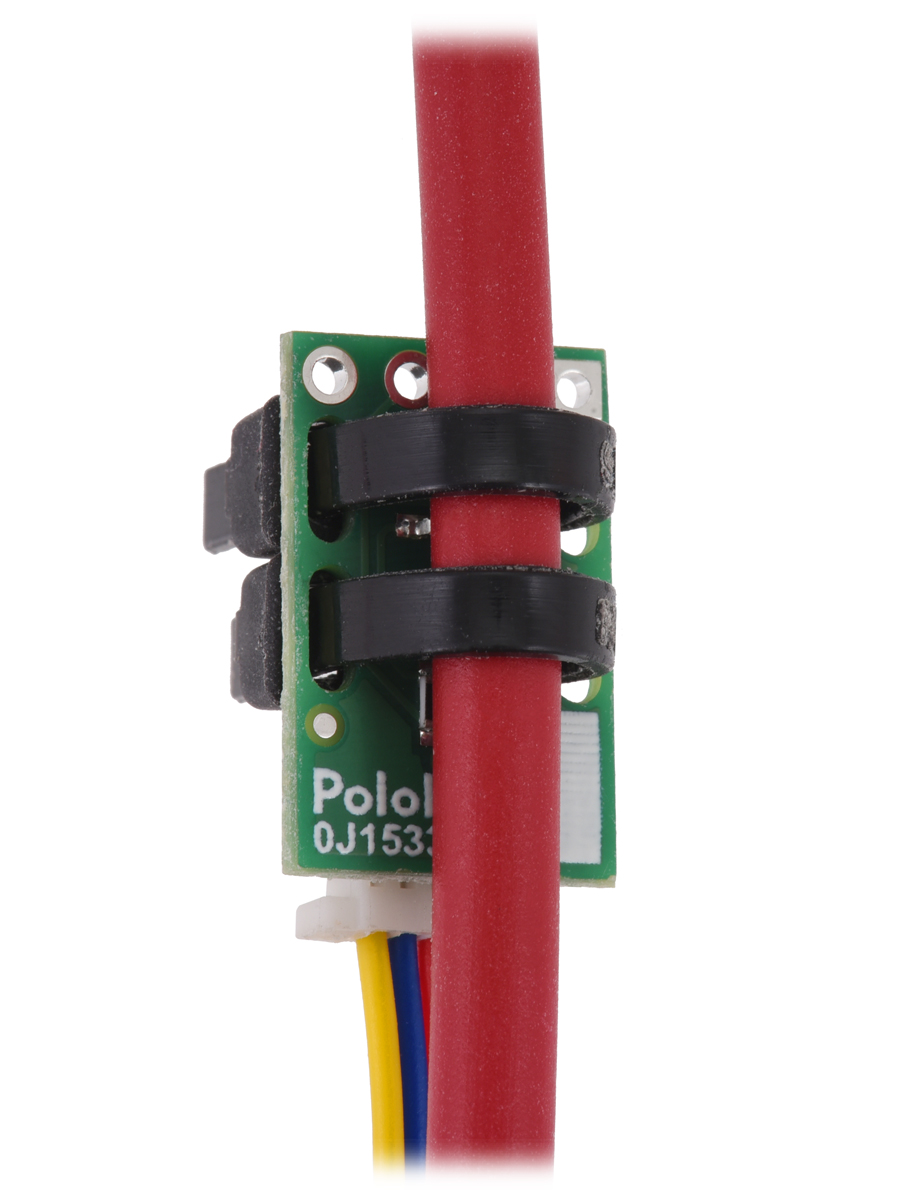

CT220 Contactless Current Sensor Carrier attached to a wire with zip ties and connected with a 4-pin JST SH-style cable.

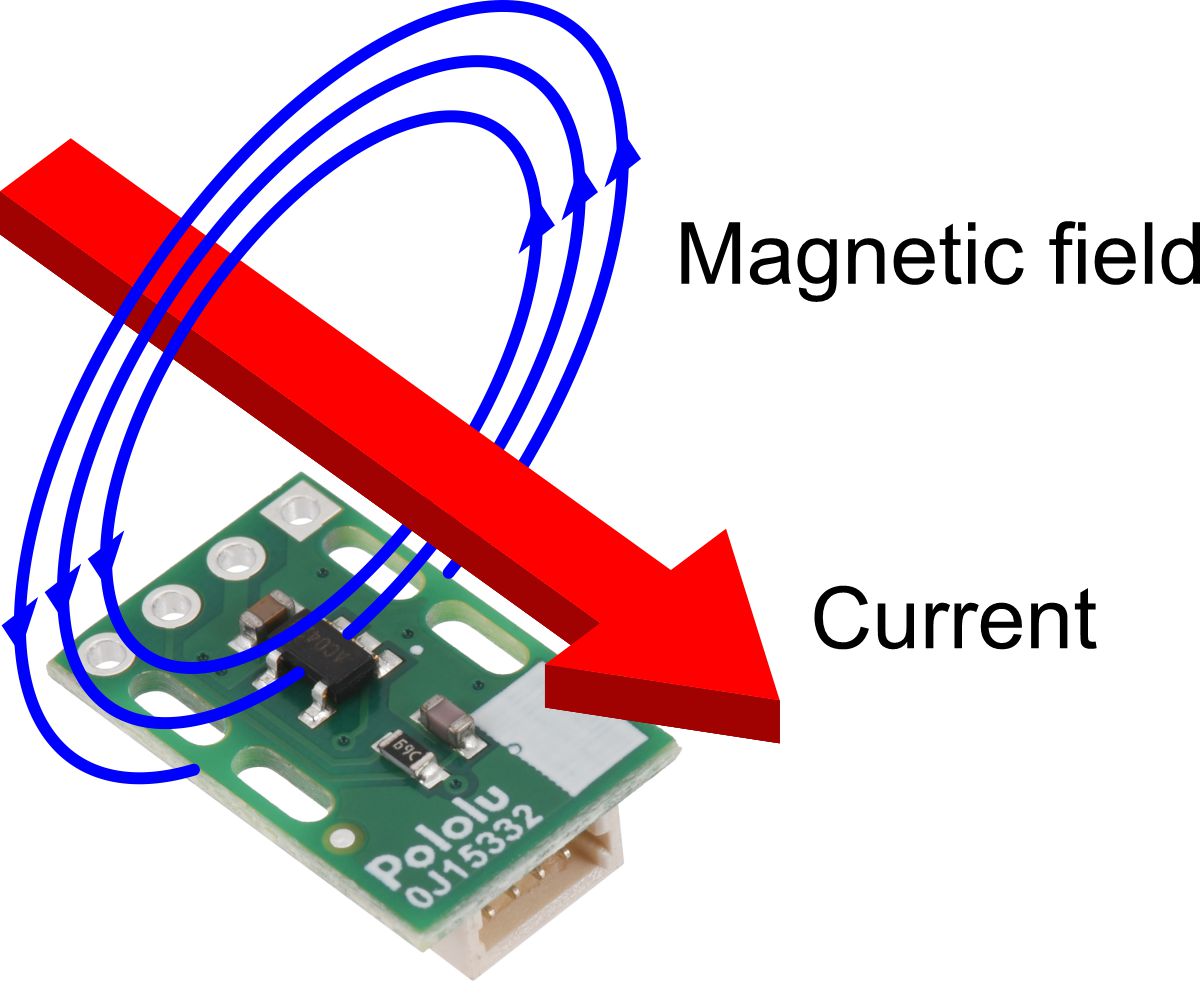

Direction of magnetic field and current measured by a CT220 Contactless Current Sensor Carrier.

The sensor requires a supply voltage of 2.7 V to 5.5 V to be connected across VDD and GND. The sensor outputs a ratiometric analog voltage on OUT that is centered at VDD/2 and changes according to the magnetic field it senses.

When measuring current in a conductor on the same side of the board as the sensor (over the IC, such as with the sensor tied to a wire as shown above), current flowing in the direction of the red arrow in the picture above increases the output voltage, while current flowing in the opposite direction decreases the output voltage. If the conductor is instead on the opposite side of the board from the sensor (under the IC), these directions are flipped.

The FLAG pin is normally high and drives low when the magnetic field is above 90% or below 10% of the full field range.

These connections can be made through the board’s JST SH-style 4-pin connector, which works with our 4-pin JST SH-style cables, or with a set of through-holes that are spaced with a 0.1″ (2.54 mm) pitch and compatible with 0.1″ male headers and solderless breadboards.

Converting the sensor output into a current reading

To get accurate current readings from the CT220, it is necessary to calibrate it in your application setup. A simple way to do this involves the following two steps:

1. Calibrate the sensor’s offset b by recording its output voltage with zero flowing current.
2. Apply a known current A₁ to the conductor and measure the sensor’s output voltage V₁. This lets you calculate the sensor’s current gain (sensitivity) a with the equation:
   a=V1–bA1">a=V1–bA1a=V1–bA1

Then, given a voltage V_OUT measured from the sensor, you can calculate the corresponding current with the gain a and offset b:

Current=VOUT–ba">Current=VOUT–baCurrent=VOUT–ba

To illustrate this with an example, let’s say you measure your sensor with no current flowing in the wire and get 2.5 V. Next, you put 10 A through your wire and measure the sensor voltage again, this time getting 2.8 V. That means the output voltage changed by 0.3 V for 10 A, so the sensitivity is 0.03 V/A, or 30 mV per A.

For better accuracy in bidirectional current applications, Allegro recommends a slightly more thorough calibration procedure that involves applying a known current in both directions; see the CT220 datasheet (2MB pdf) for details.

Schematic and dimension diagrams

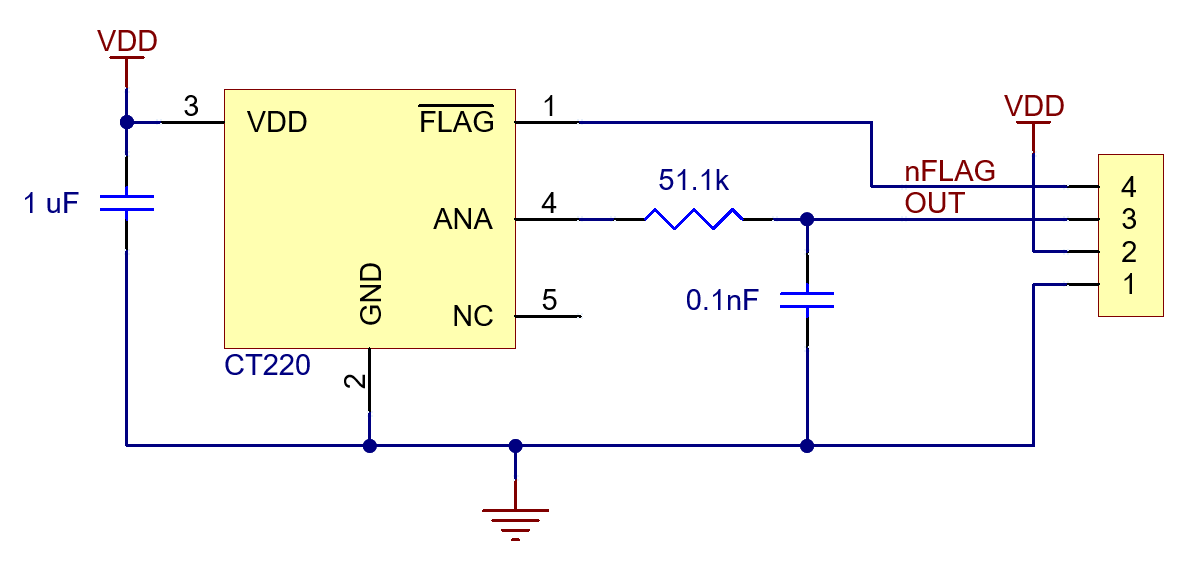

Schematic diagram of the CT220 Contactless Current Sensor Carrier.
