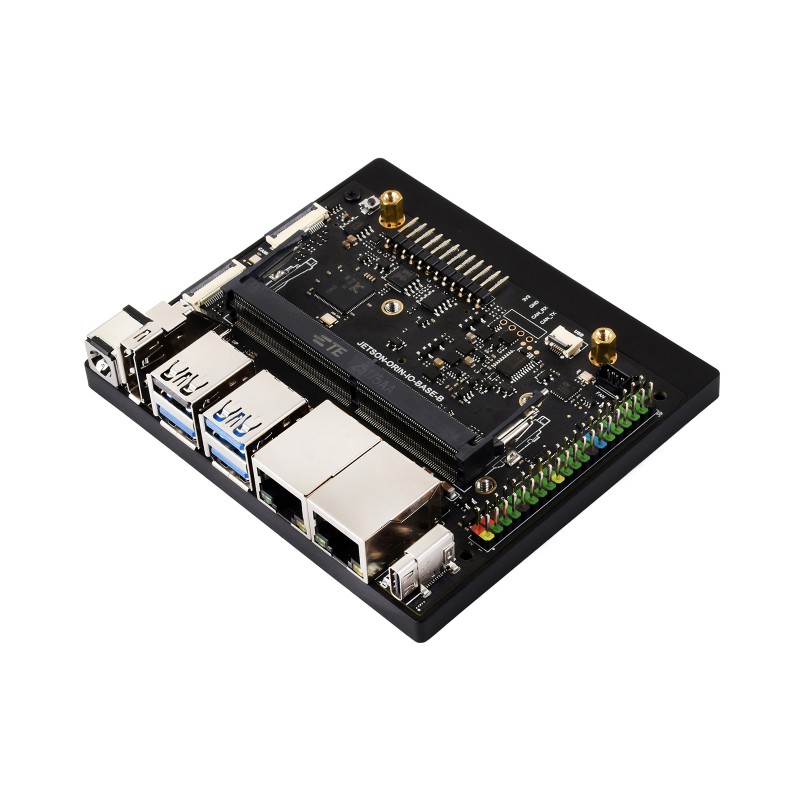

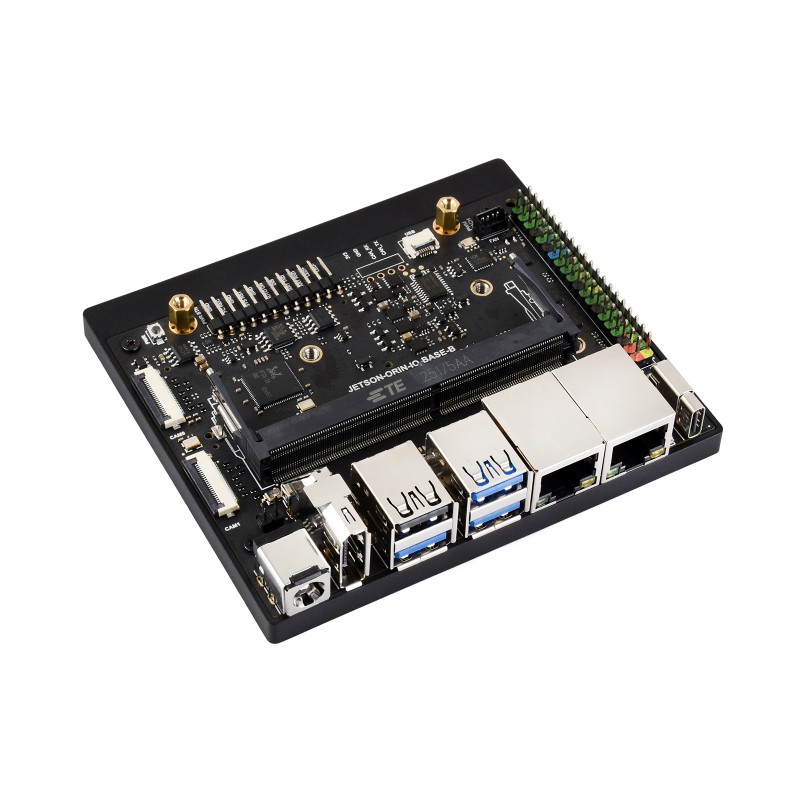

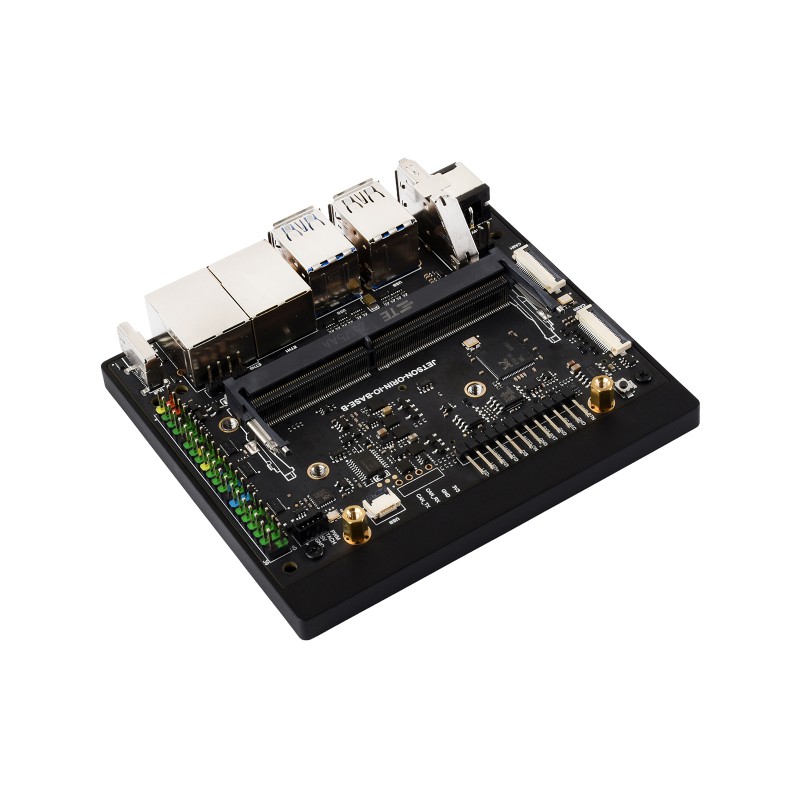

Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board
Prices incl. GST
Out of Stock.
- Product Code: Waveshare-24359
Waveshare Jetson Orin Nano / NX Base Board
Based on the Jetson Orin Nano and Jetson Orin NX modules, onboard dual Ethernet ports
Supports connecting to N-VIDIA Jetson Orin Nano module and Jetson Orin NX module
Expands 2 × CSI camera interfaces for AI Intelligence applications such as face recognition road sign detection, Lane Line detection, and license plate recognition
* Note: the adapter cable is required for connecting the camera.
4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors
Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors
Supports DP High-definition Port
color-coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.
Onboard 2 × M.2 Key M ports for easy connecting Solid State Drives and 1 × M.2 Key E interface for connecting wireless NIC, which can reduce cable connection
* for reference only, the Solid State Drive and wireless network card are NOT included.
- 260PIN DO-DIMM socket
for connecting Jetson Orin Nano/NX module - 12PIN header
Adapting pins for power supply button, reset button, debug serial port, force recovery setting, auto power-up enable and power indicator functions - Power button
- 2 × 22PIN CSI camera interfaces
2 × MIPI CSI 4-lane camera interfaces - DC Power jack
Supports wide range 9V ~ 19V power supply, compatible with 5.5 × 2.5mm male plug - DisplayPort port
Supports 4K display
- 4 × USB Type-A ports
3 × USB 3.2 Gen2 ports, up to 10Gbps data transmission,
1 × USB 2.0 port, supports 480Mbps data transmission - RJ45 2.5G Ethernet port
- RJ45 Gigabit Ethernet port
- USB Type-C port
for system burning and data communication - 40PIN header
- 4PIN PWM fan header
- 2 × USB 2.0 connectors
FFC 0.5mm 6PIN connectors
- M.2 Key E
for connecting wireless NIC - 2 x M.2 Key M
for connecting NVME solid state drives
- RTC backup battery header
PH1.25 2P
