144x168, 1.3inch Bicolor LCD with Embedded Memory, Low Power
Please inform me as soon as the product is available again.
₹ 1,679.00 *
Prices incl. GST
Out of Stock.
- Product Code: Waveshare-15883
- MPN: 15883
This is a black/white bicolor LCD display module with embedded memory, 1.3inch diagonal, 144x168...more
Product information "144x168, 1.3inch Bicolor LCD with Embedded Memory, Low Power"

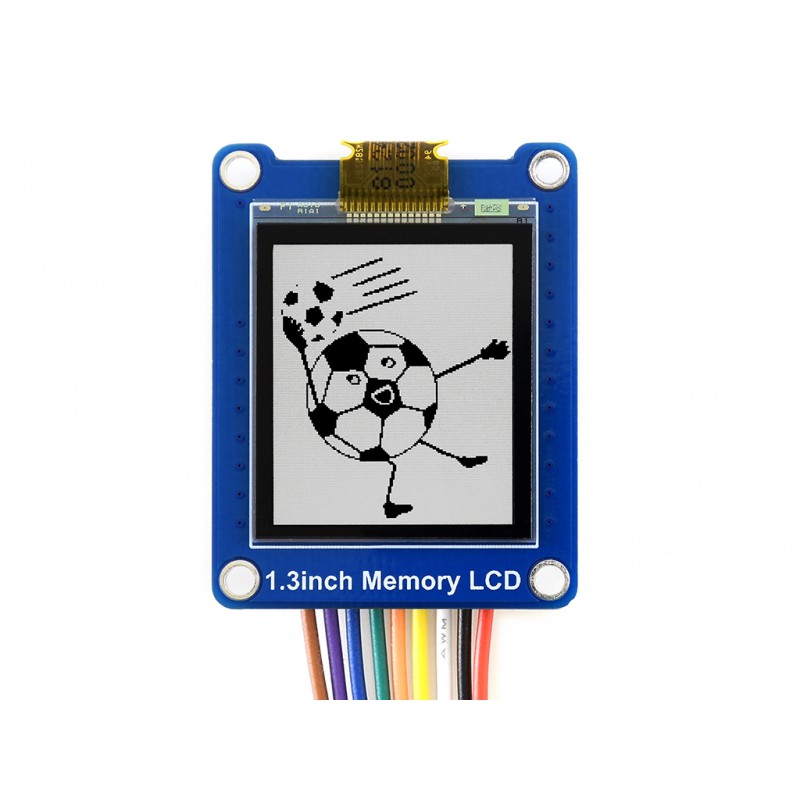

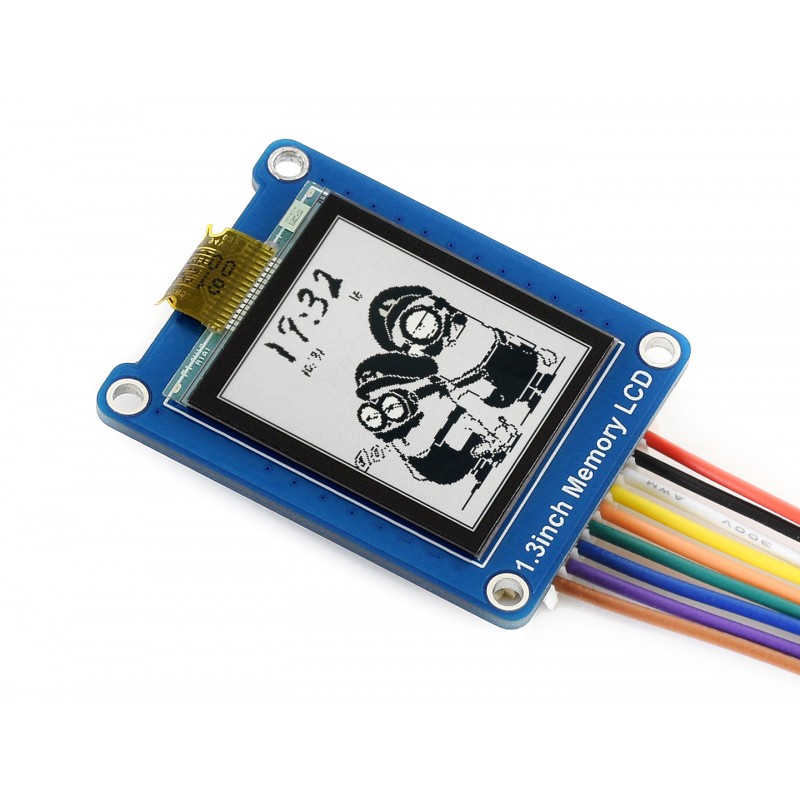

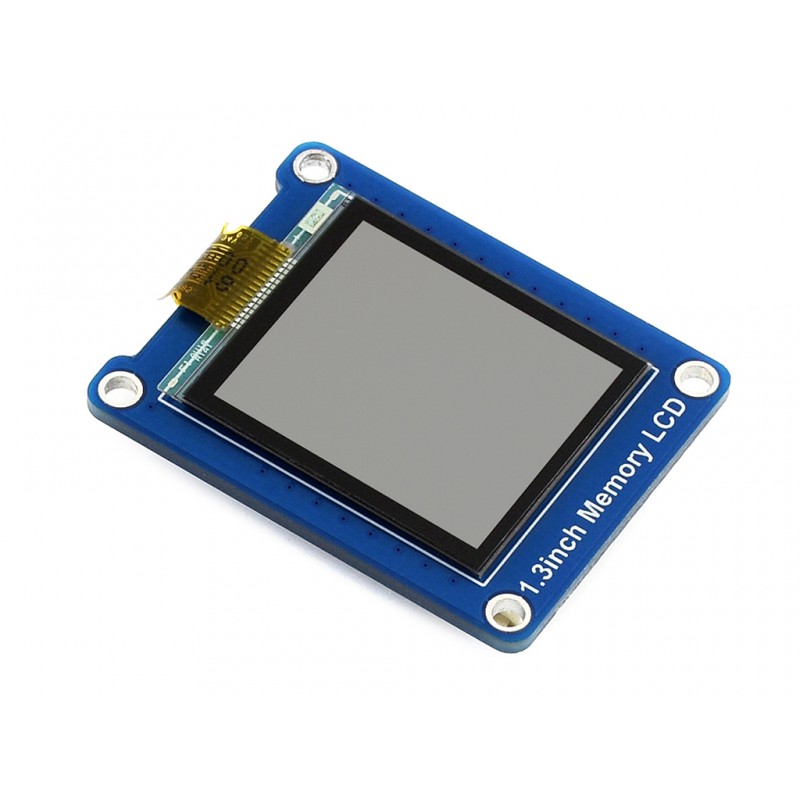

This is a black/white bicolor LCD display module with embedded memory, 1.3inch diagonal, 144x168 resolution, communicating via SPI interface.
It features lower power consumption compared to normal LCDs, and higher refresh rate compared to e-Papers without "ghosting" issue.
Features
- 144x168 resolution, high contrast rate, clear displaying
- SPI interface, requires minimum GPIO for controlling
- Low power consumption, wide viewing angle, still viewable even under sunlight
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- LCD type: Memory LCD
- Interface: SPI
- Display color: black, white
- Resolution: 144x168
- Display size: 20.88mm × 24.36mm
- Operating voltage: 3.3V / 5V
- Power: 1mW (typ.)
Interface

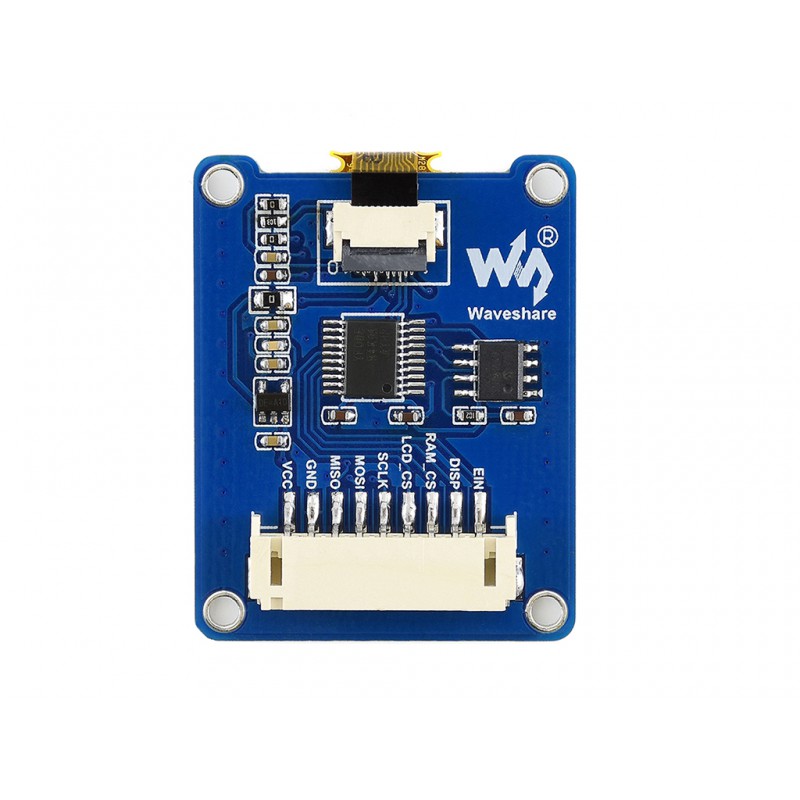

| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power (3.3V / 5V input) |
| 2 | GND | Ground |
| 3 | MISO | Module SPI data output |
| 4 | MOSI | Module SPI data input |
| 5 | SCLK | Module SPI clock input |
| 6 | LCD_CS | Memory LCD chip selection |
| 7 | RAM_CS | SPI RAM chip selection |
| 8 | DISP | Display on/off signal |
| 9 | EIN | External Vcom signal |
Dimensions
