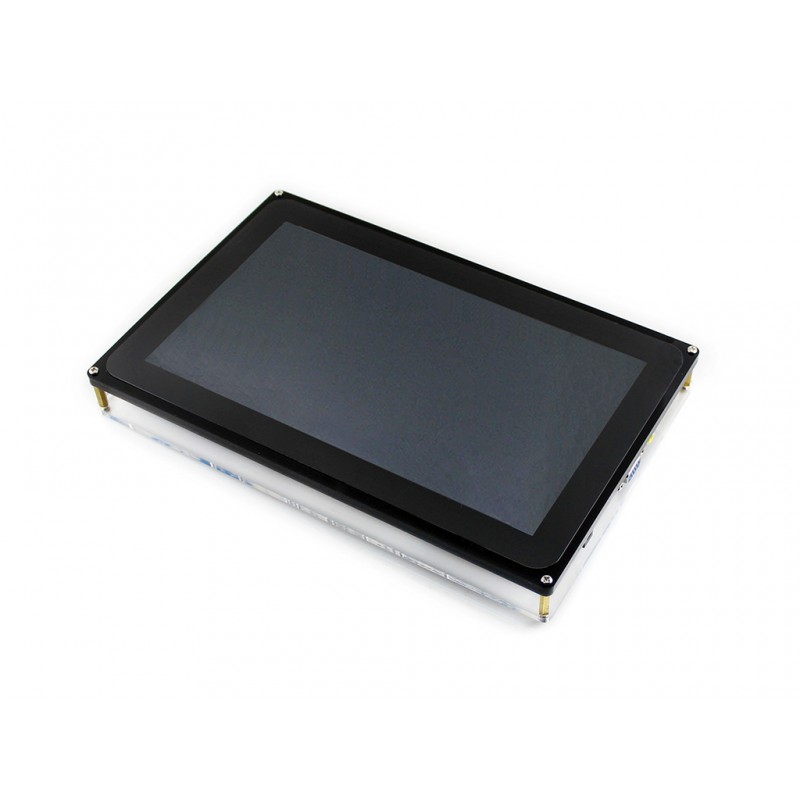

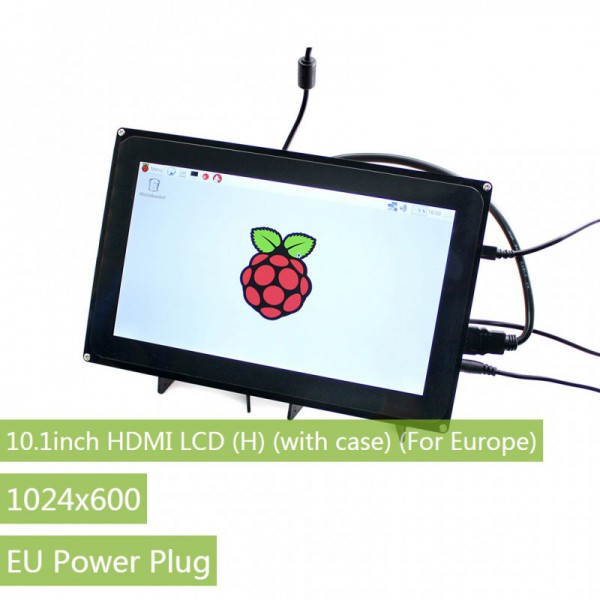

10.1inch HDMI LCD (H) (with case) (For Europe), 1024x600

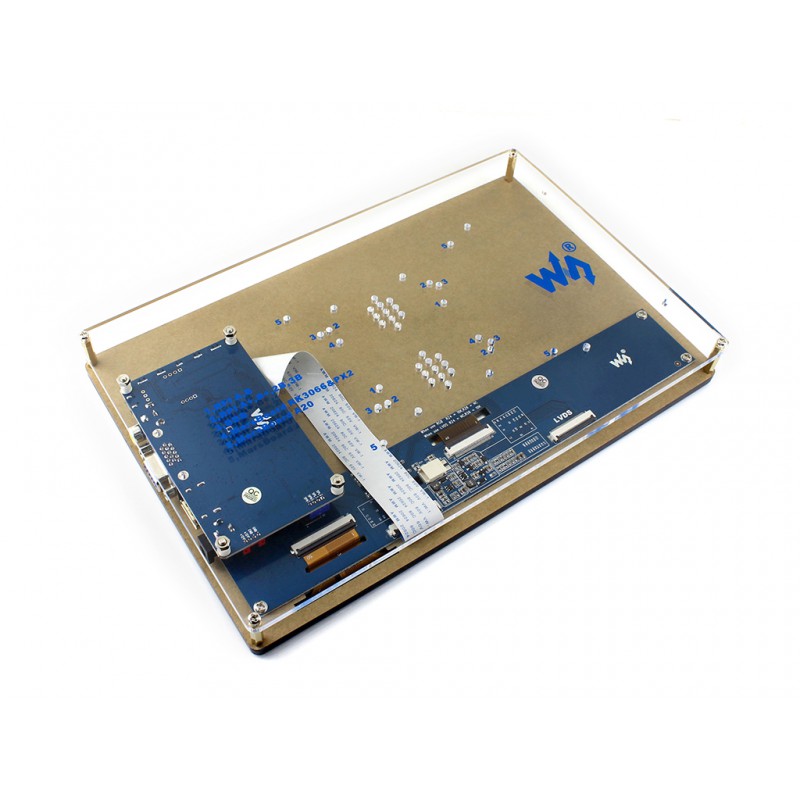

The LCD and Control Board

• 1024x600 hardware resolution
• Capacitive touch control
• Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, as well as general desktop computers
  • When works with Raspberry Pi, supports Raspbian/Ubuntu, single touch, and driver free
  • When works with BB Black, Angstrom image is provided
  • When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free
• Multi video input interfaces: HDMI, VGA, and AV(CVBS)
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.
• Supports 100-level backlight adjustment
• Firmware is upgradable to support more new features (continually updated)

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

The Case

• Material : high quality clear Acrylic
• Comes with bottom holder, 45° tilt angle
• Features mounting holes for Raspberry Pi 3B+/3B/2B/B+/A+/B, and BB Black

Using with Game Consoles

Note:

• Limited by the game console OS, the touch function is unavailable.
• Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

External Dimension

Package Content

1. 10.1inch Capacitive Touch LCD (D) x 1
2. HDMI LCD control board x 1
3. HDMI cable x 1
4. HDMI to Micro HDMI Adapter x 1
5. USB type A plug to micro B plug cable x 1
6. 40-pin FFC x 1
7. Case for 10.1inch LCD × 1
8. Screws pack x 1
9. Bottom holder x 2
10. Power adapter EU standard ×1
11. Quick start sheet x1

1

2

3

4

5

6

7+8

9

10

11
