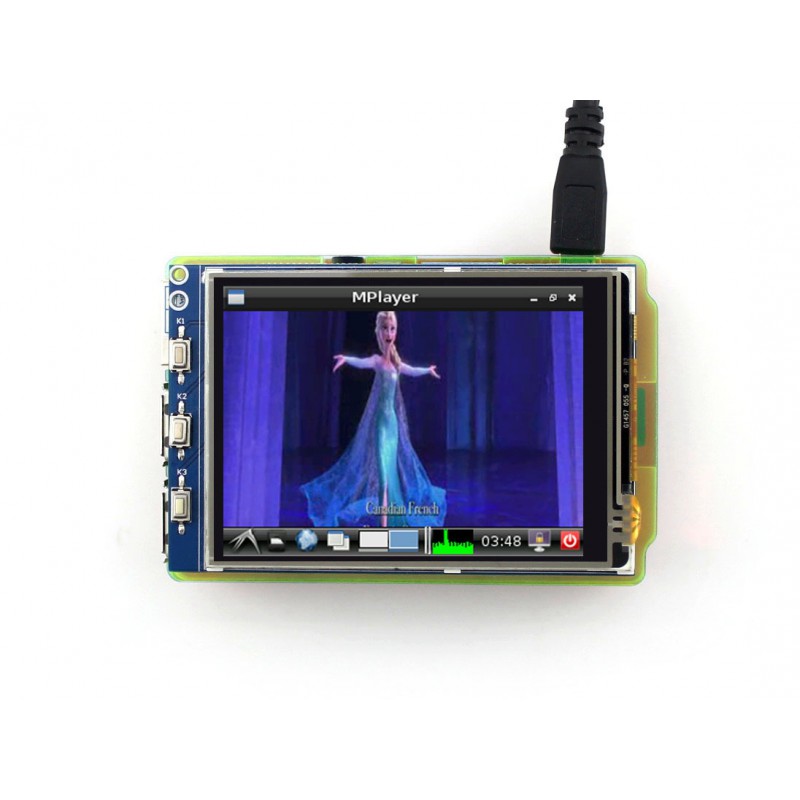

3.2inch RPi LCD (B), 320×240
₹ 2,669.00 *
Prices incl. GST
Ready to ship today,
Delivery time appr. 1-3 workdays.
1 in stock
- Product Code: Waveshare-9201
- MPN: 9201
Features 320×240 resolution Resistive touch control Supports any revision of Raspberry...more
Product information "3.2inch RPi LCD (B), 320×240"
Features
- 320×240 resolution
- Resistive touch control
- Supports any revision of Raspberry Pi (directly-pluggable)
- Drivers provided (works with your own Raspbian/Ubuntu directly)
- Size perfectly fits the Pi
- 3 user keys
- High quality immersion gold surface plating
- Supports Raspbian system, enables your system to:
- Take photos by touching (up to 17 camera modes)
- Support software keyboard (system interaction without keyboard/mouse)
Key Parameters
| LCD Type | TFT |
|---|---|
| LCD Interface | SPI |
| Touch Screen Type | Resistive |
| Touch Screen Controller | XPT2046 |
| Colors | 65536 |
| Backlight | LED |
| Resolution | 320*240 (Pixel) |
| Aspect Ratio | 4:3 |
| Power Consumption | TBD |
| Backlight Current | TBD |
| Operating Temp. (?) | TBD |
Interface
| Pin No. | Symbol | Description |
|---|---|---|
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V power input) |
| 3, 5, 7, 8, 10, 22 | NC | NC |
| 6, 9, 14, 20, 25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 12 | KEY1 | Key |
| 13 | RST | Reset |
| 15 | LCD_RS | LCD instruction control, Instruction/Data Register selection |
| 16 | KEY2 | Key |
| 18 | KEY3 | Key |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 23 | LCD_SCK / TP_SCK | SPI clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
PACKAGE CONTENT
- 3.2inch RPi LCD (B) x 1
- Touch pen x 1
- RPi screws pack (2pcs) x 1
- Quick start sheet x1
External Dimension
