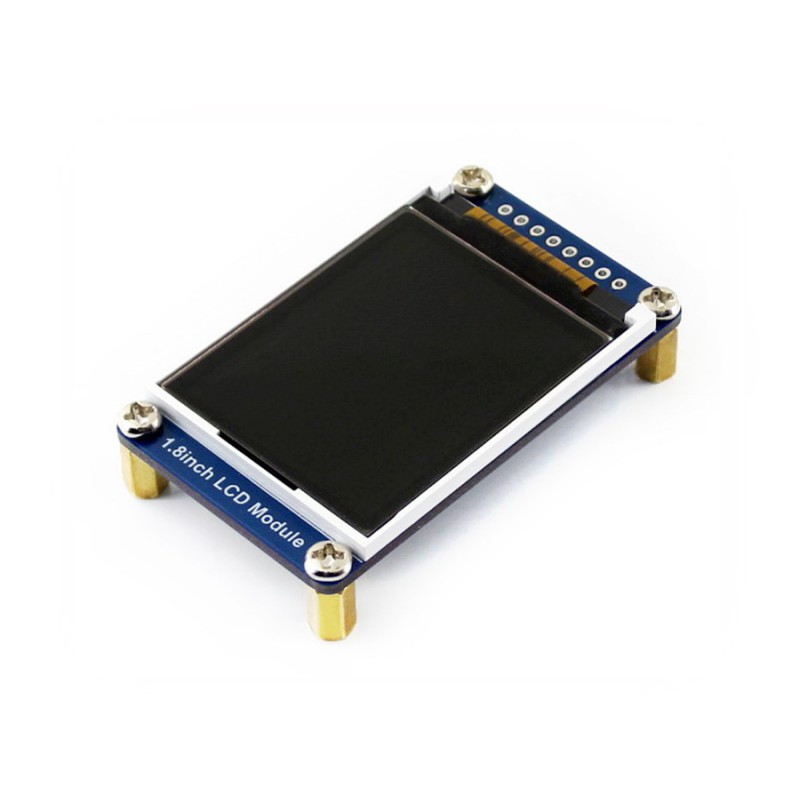

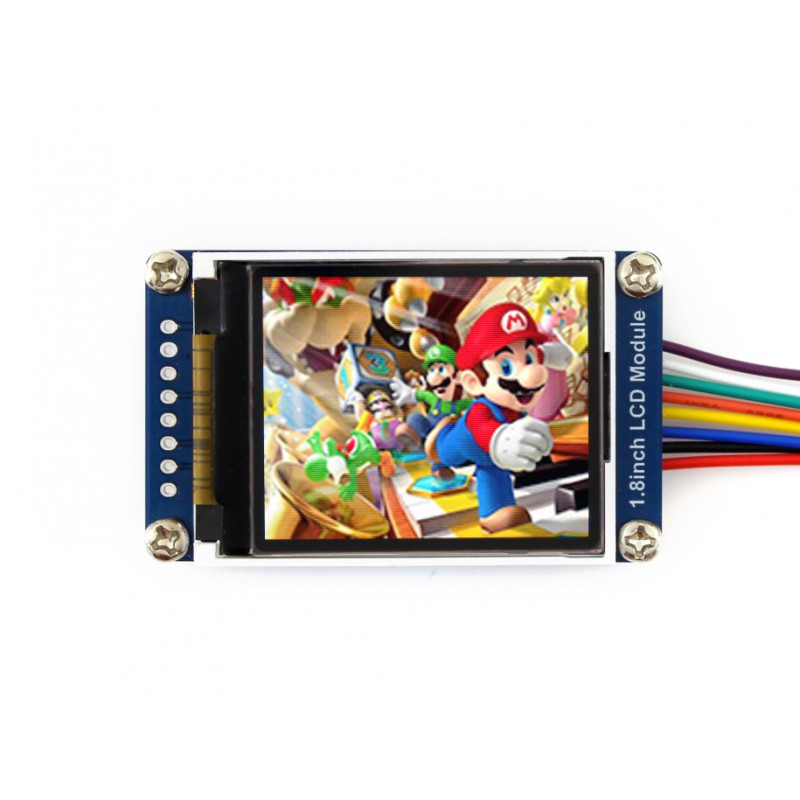

128x160, General 1.8inch LCD display Module
Please inform me as soon as the product is available again.
₹ 889.00 *
Prices incl. GST
Out of Stock.
- Product Code: Waveshare-13892
- MPN: 13892
This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded...more
Product information "128x160, General 1.8inch LCD display Module"
This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface.
Features
- SPI interface, requires minimum GPIO for controlling
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: ST7735S
- Interface: SPI
- Display color: RGB, 65K color
- Resolution: 128x160
- Backlight: LED
- Operating voltage: 3.3V

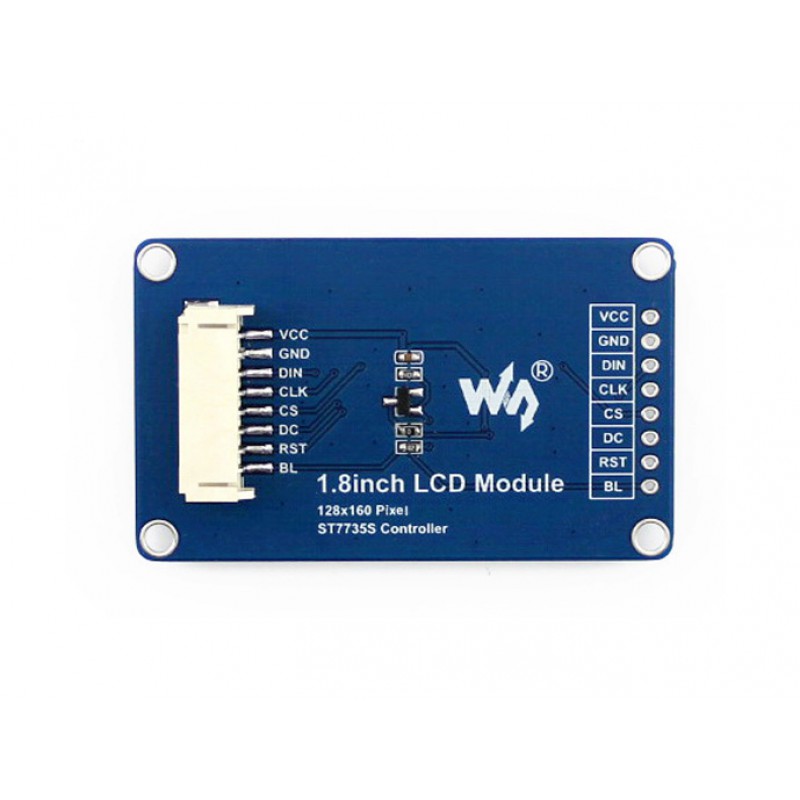

Interface
| Symbol | Description |
|---|---|
| VCC | Power (3.3V input) |
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
PACKAGE CONTENT
- 1.8inch LCD Module x1
- PH2.0 20cm 8Pin x1
Dimensions
