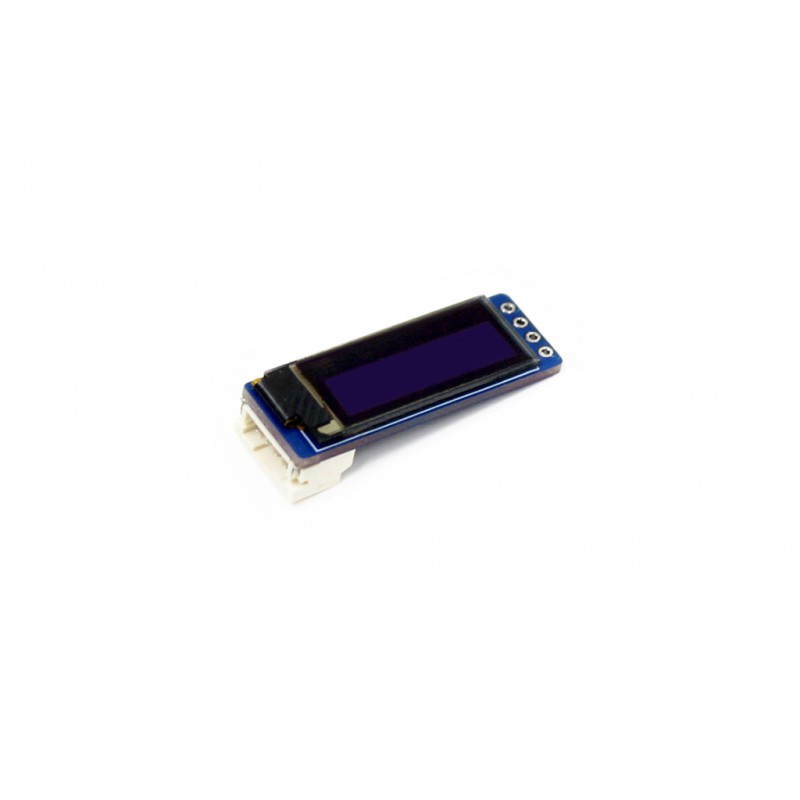

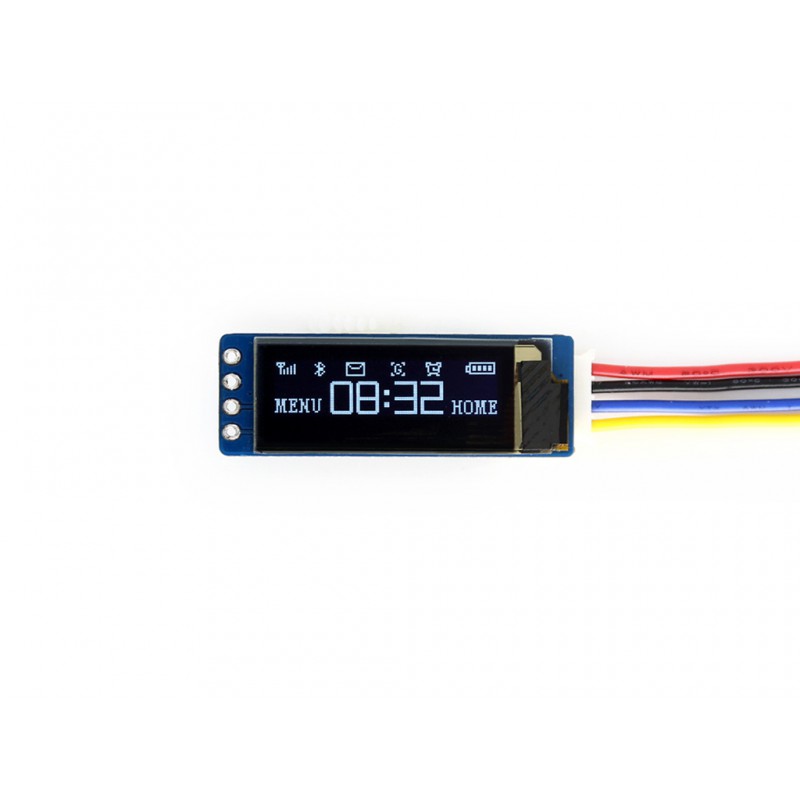

128x32, General 0.91inch OLED display Module
Please inform me as soon as the product is available again.
₹ 699.00 *
Prices incl. GST
Out of Stock.
- Product Code: Waveshare-14657
- MPN: 14657
This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded...more
Product information "128x32, General 0.91inch OLED display Module"
This is a general OLED display Module, 0.91inch diagonal, 128x32 pixels, with embedded controller, communicating via I2C interface.
Features
- 0.91inch small form factor
- 128x32 high resolution
- I2C interface, requires only two signal pins
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Driver: SSD1306
- Interface: I2C
- Display color: White
- Resolution: 128x32
- Viewing angle: >160°
- Operating voltage: 3.3V / 5V
- Dimension: 36 x 12.5 (mm)

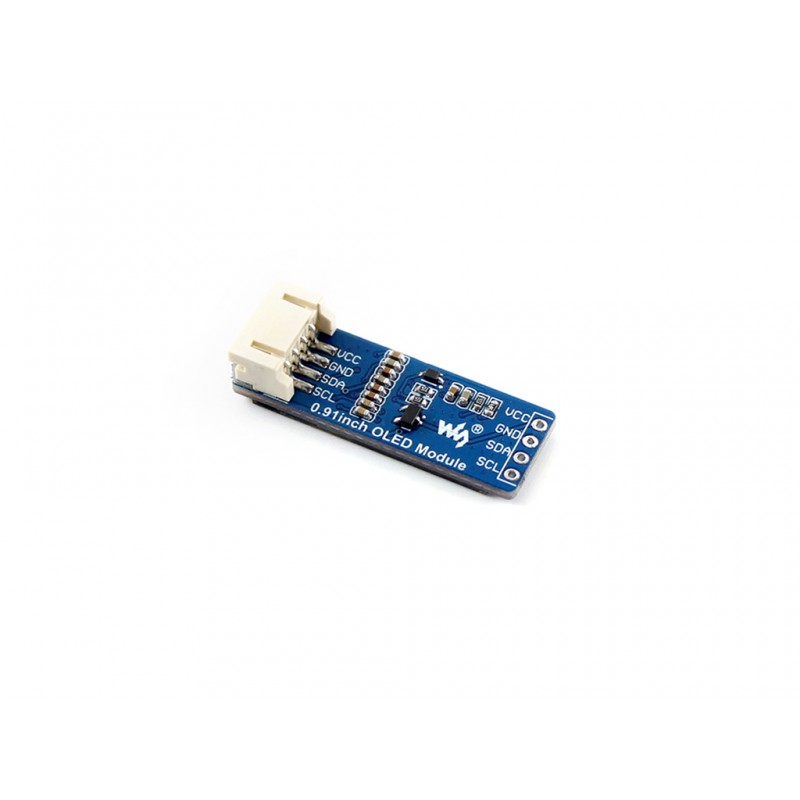

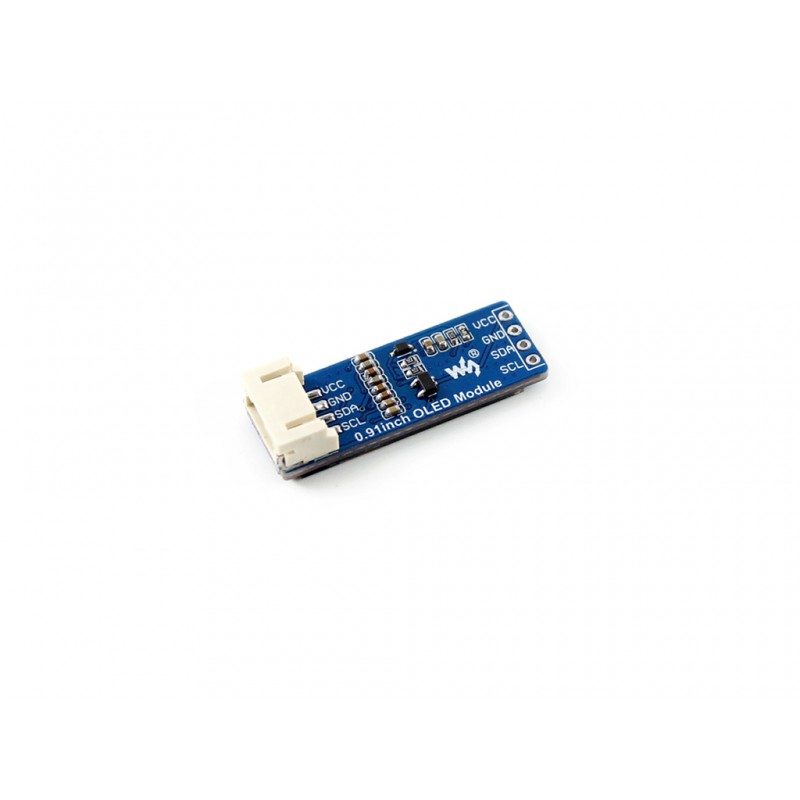

Interface
| Symbol | Description |
|---|---|
| VCC | Power (3.3~5V input) |
| GND | Ground |
| SDA | Data input |
| SCL | Clock input |
PACKAGE CONTENT
- 0.91inch OLED Module x1
- PH2.0 4Pin x1
Dimensions
