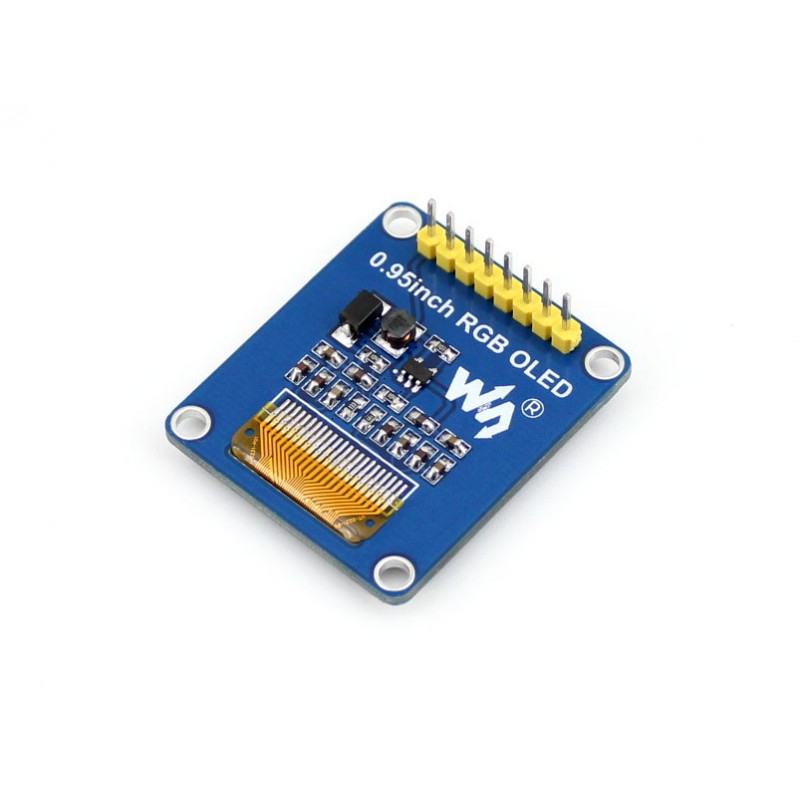

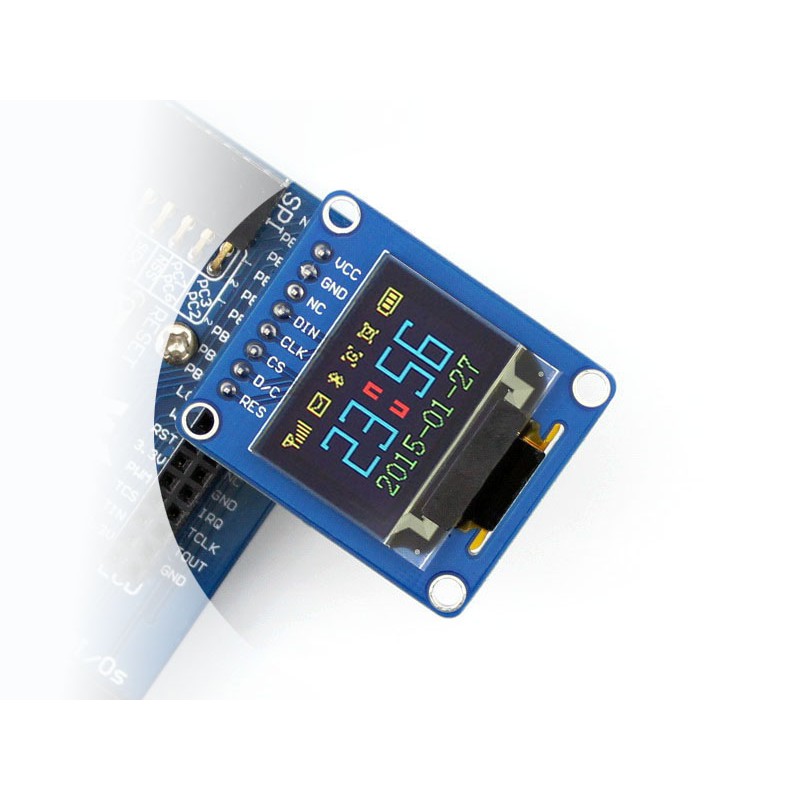

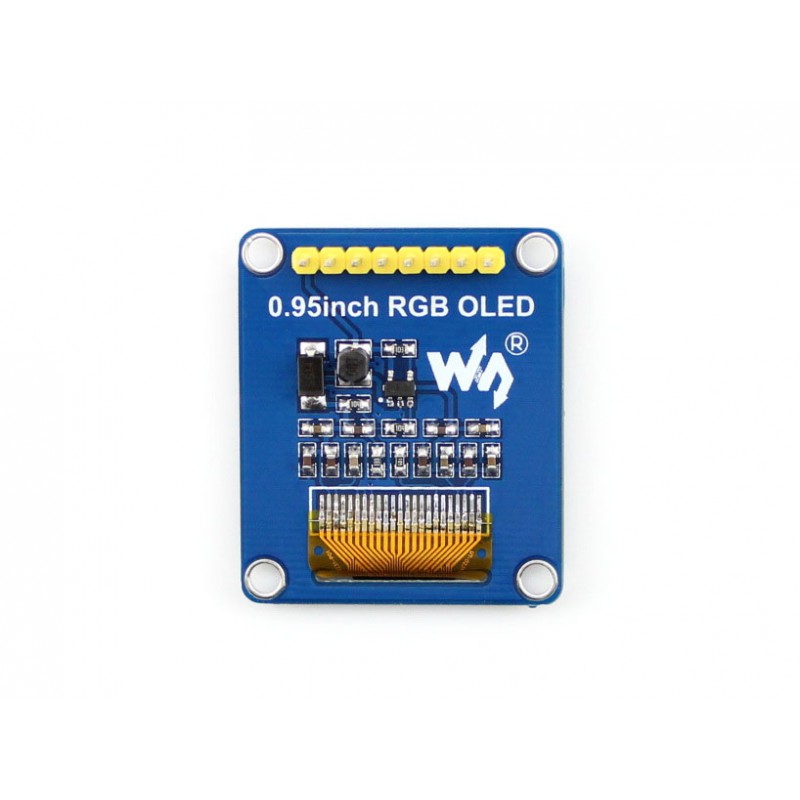

0.95inch RGB OLED (B)

Preview: 0.95inch RGB OLED (B) Preview: 0.95inch RGB OLED (B) Preview: 0.95inch RGB OLED (B) Preview: 0.95inch RGB OLED (B)
0.95inch RGB OLED (B)
0.95inch RGB OLED (B)
0.95inch RGB OLED (B)
0.95inch RGB OLED (B)

Please inform me as soon as the product is available again.
₹ 1,189.00 *

Prices incl. GST

Out of Stock.

  • Product Code: Waveshare-10514
  • MPN: 10514
Description Reviews 0
Description
Key Parameters Driver Chip SSD1331 Interface SPI Resolution 96×64...more
Close menu
Product information "0.95inch RGB OLED (B)"

Key Parameters

Driver Chip SSD1331
Interface SPI
Resolution 96×64
Display Size 0.95inch
Colors 65K colorful
Visible Angle >160°
Operating Temp. (?) -20~70
Storage Temp. (?) -30~80
Operating Voltage 3.3V / 5V

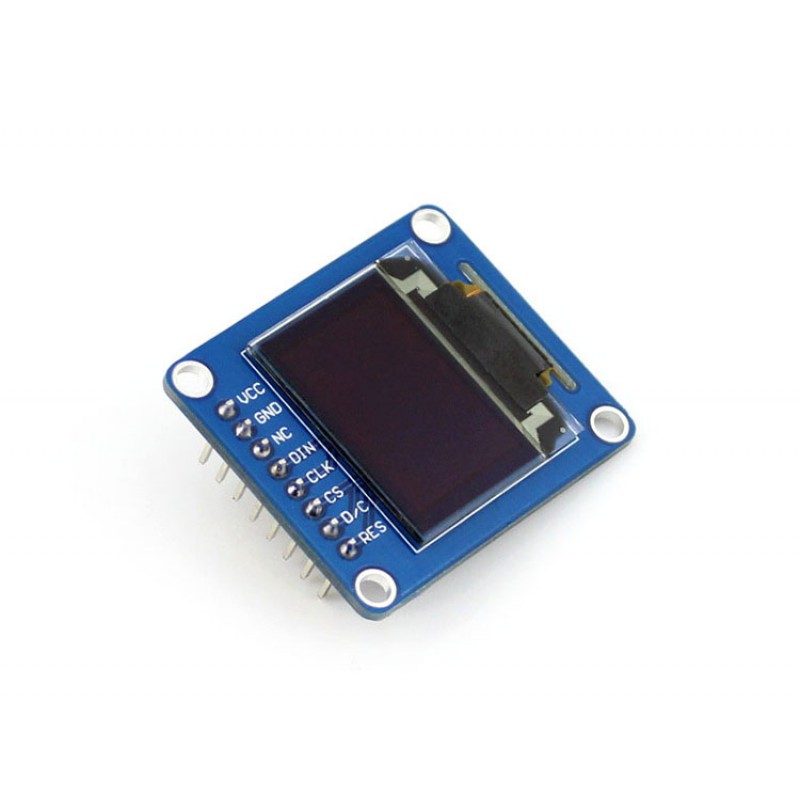

Interface

Pin No.SymbolDescription
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

PACKAGE CONTENT

  1. 0.95inch RGB OLED (B) x 1
