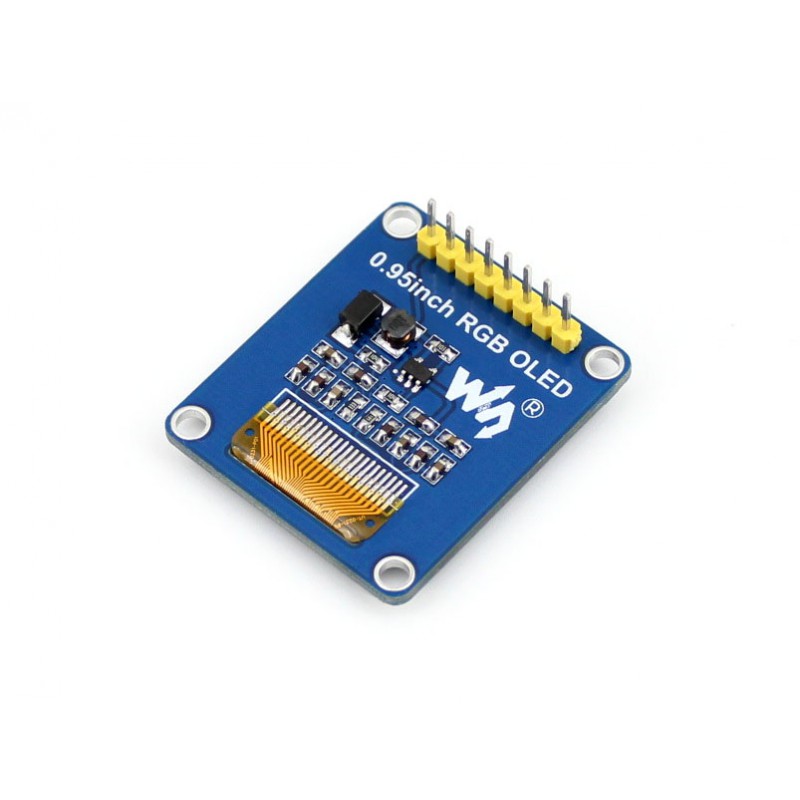

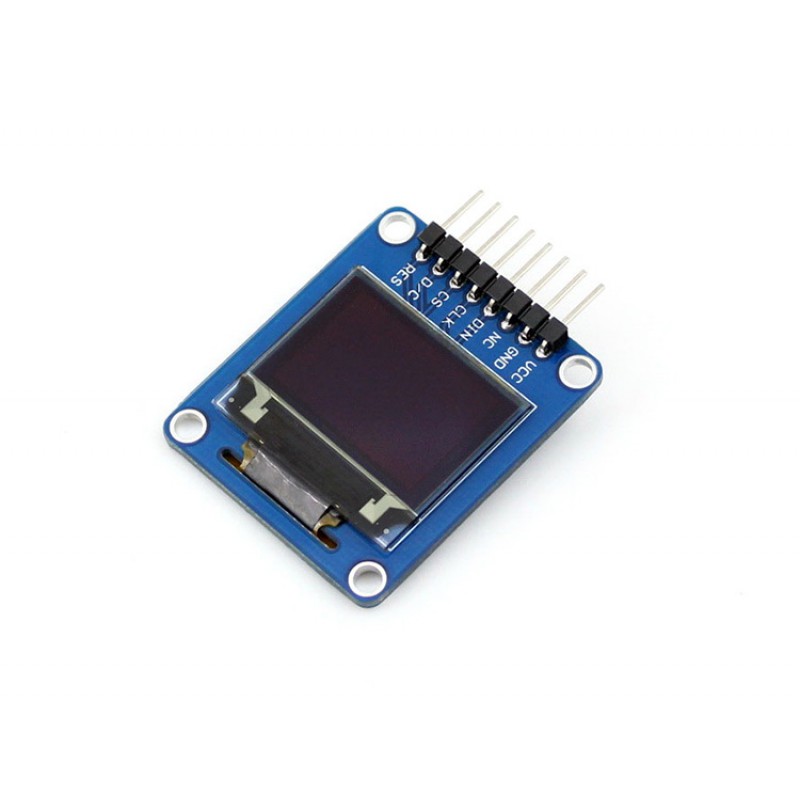

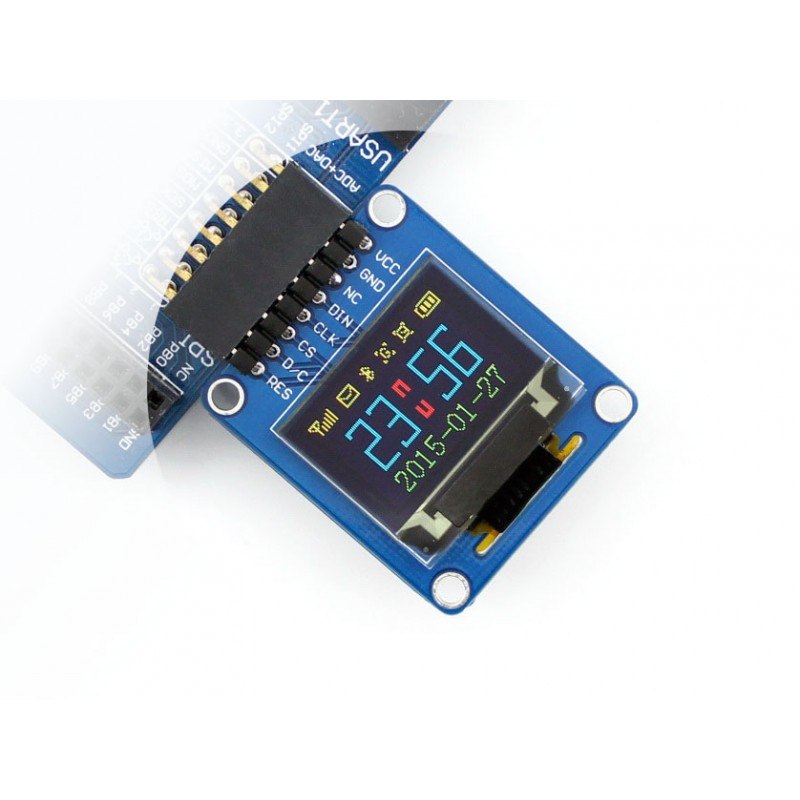

0.95inch RGB OLED (A)

Preview: 0.95inch RGB OLED (A) Preview: 0.95inch RGB OLED (A) Preview: 0.95inch RGB OLED (A)
0.95inch RGB OLED (A)
0.95inch RGB OLED (A)
0.95inch RGB OLED (A)

Please inform me as soon as the product is available again.
₹ 1,189.00 *

Prices incl. GST

Out of Stock.

  • Product Code: Waveshare-10507
  • MPN: 10507
Description Reviews 0
Description
Key Parameters Driver Chip SSD1331 Interface SPI Resolution 96×64...more
Close menu
Product information "0.95inch RGB OLED (A)"

Key Parameters

Driver Chip SSD1331
Interface SPI
Resolution 96×64
Display Size 0.95inch
Colors 65K colorful
Visible Angle >160°
Operating Temp. (?) -20~70
Storage Temp. (?) -30~80
Operating Voltage 3.3V / 5V

Interface

Pin No.SymbolDescription
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

PACKAGE CONTENT

0.95inch RGB OLED (A) x 1
