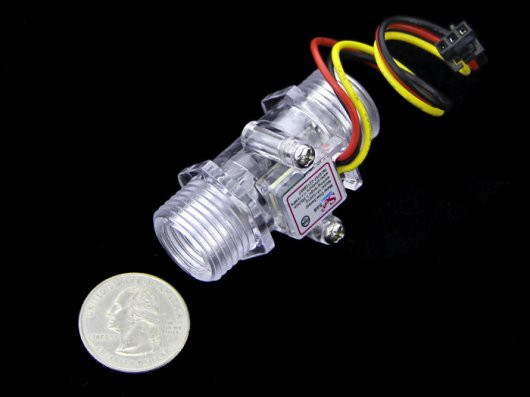

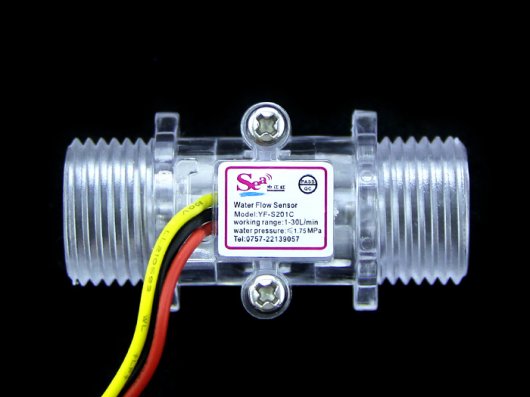

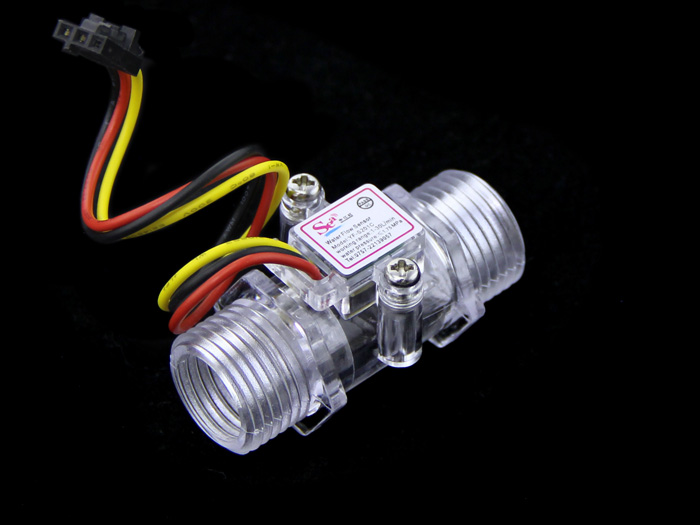

G1/2" Water Flow Sensor Enclosure

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

Feature:

• Compact, Easy to Install
• High Sealing Performance
• High Quality Hall Effect Sensor
• RoHS Compliant
• Transparent

Specification?

• Mini. Working Voltage: DC 4.5V
• Max. Working Current: 15mA (DC 5V)
• Working Voltage: DC 5V~24V
• Flow Rate Range: 1~30L/min
• Flow Pulse: F(Hz)=(5.0*Q)±3% Q=L/Min
• Load Capacity: ≤10mA (DC 5V)
• Operating Temperature: ≤80?
• Liquid Temperature: ≤120?
• Operating Humidity: 35%~90%RH
• Water Pressure: ≤1.75MPa
• Storage Temperature: -25~+ 80?
• Storage Humidity: 25%~95%RH
