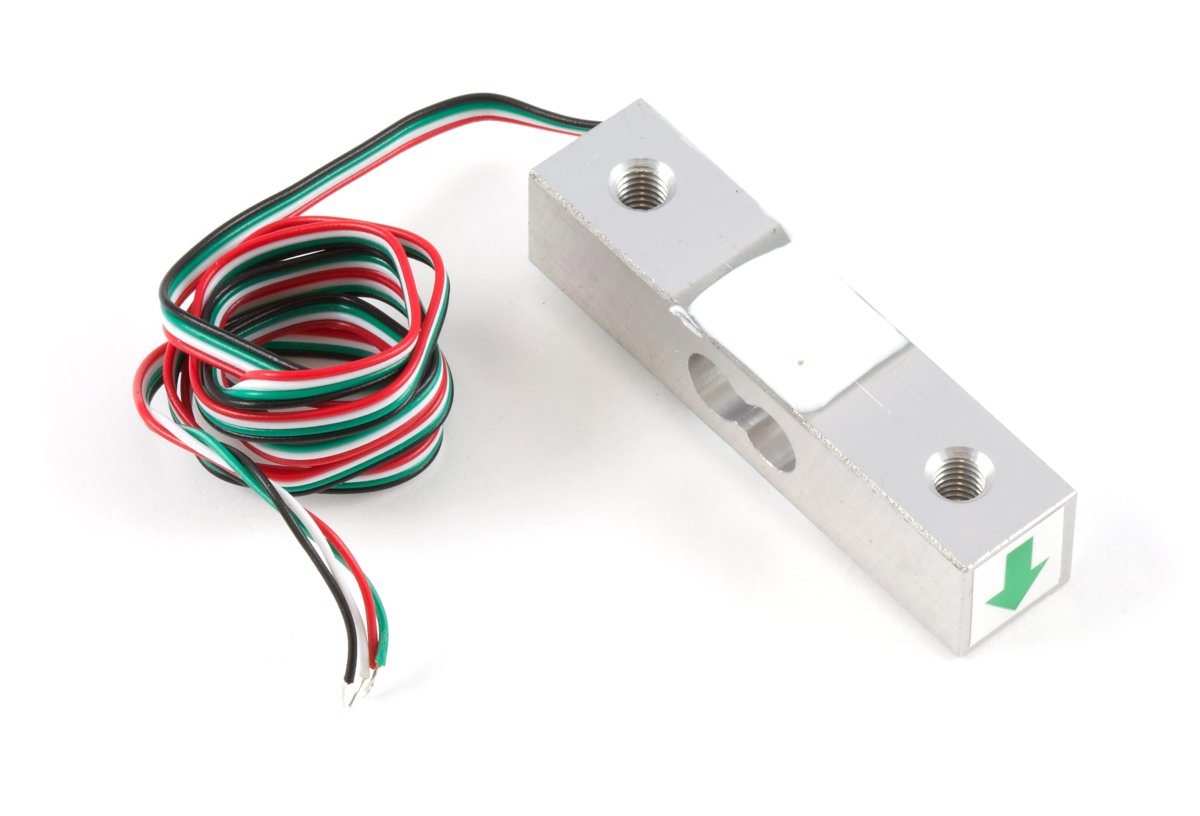

Single Point Load Cell - 50kg

₹ 999.00 *

Prices incl. GST

Ready to ship today,
Delivery time appr. 1-3 workdays.
4 in stock

Load cells are used to measure weight or forces. They require a load cell interface to function....more

Product information "Single Point Load Cell - 50kg"

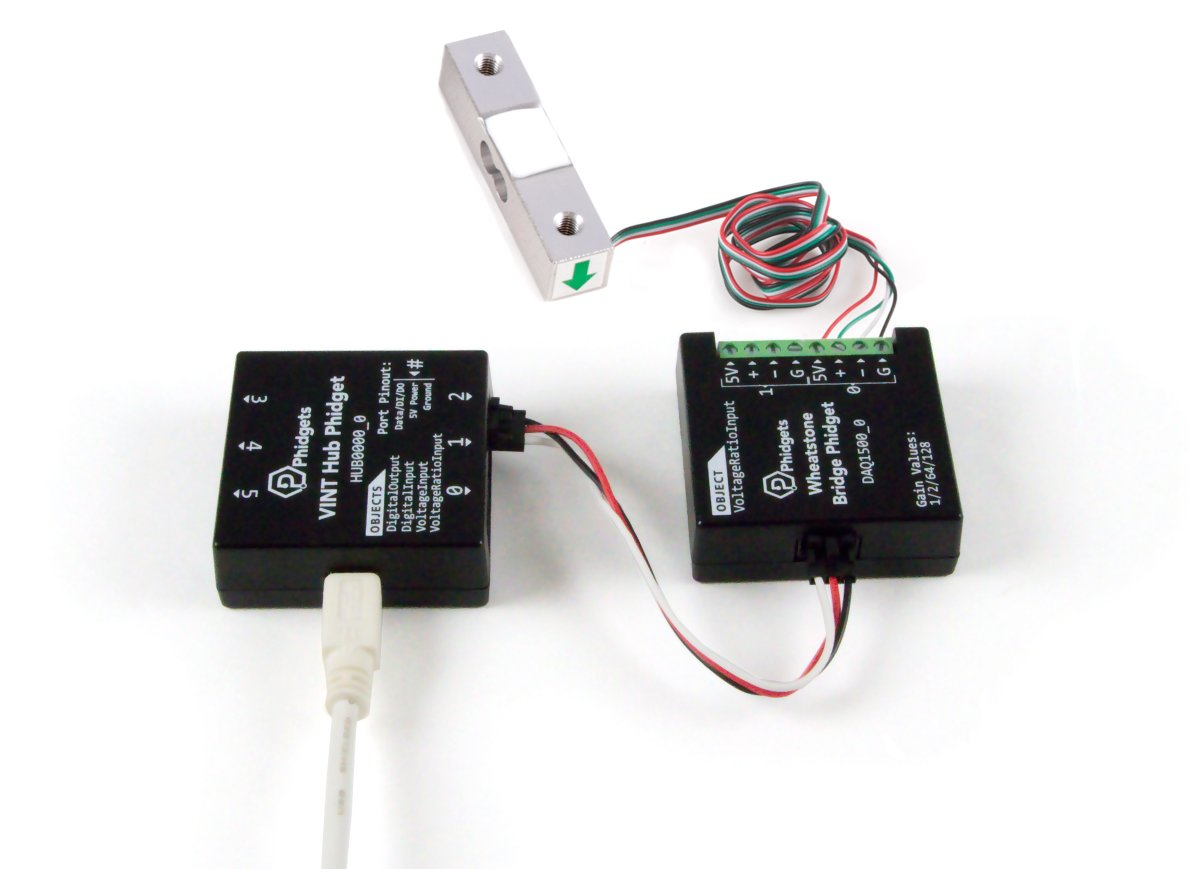

Load cells are used to measure weight or forces. They require a load cell interface to function.

What is a load cell? Learn what a load cell is, how they work, and how you can use them with Phidgets.

A step-by-step guide showing you how to calibrate a load cell with Phidgets.

Learn what a load cell is, how they work, and how you can use them to measure weight.

Learn how to calibrate a load cell with Phidgets.

Sensor Properties
Controlled By	Bridge
Sensor Type	Single Point Load Cell
Load Cell Accuracy Class	Consumer Grade
Weight Capacity Max	50 kg
Maximum Overload	60 kg
Creep	50 g/hr
Zero Balance	± 750 g
Cell Repeatability Error Max	± 25 g
Cell Non-Linearity Max	25 g
Cell Hysteresis Max	25 g
Temperature Effect on Span	2.5 g/°C
Temperature Effect on Zero	5 g/°C
Electrical Properties
Rated Output	1 mV/V
Rated Output Error Max	± 150 μV/V
Output Impedance	1 kΩ
Supply Voltage Max	5 V DC
Physical Properties
Compensated Temperature Min	-10 °C
Compensated Temperature Max	40 °C
Operating Temperature Min	-20 °C
Operating Temperature Max	55 °C
Cable Length	550 mm
Cable Gauge	30 AWG
Material	Aluminium Alloy (LY12CZ)
Screw Thread Size	M5x0.8
Customs Information
Canadian HS Export Code	8423.90.00
American HTS Import Code	8423.90.10.00
Country of Origin	CN (China)
