Motion Sensor Phidget
Prices incl. GST
Ready to ship today,
Delivery time appr. 1-3 workdays.
2 in stock
- Product Code: Phidgets-MOT2002_0

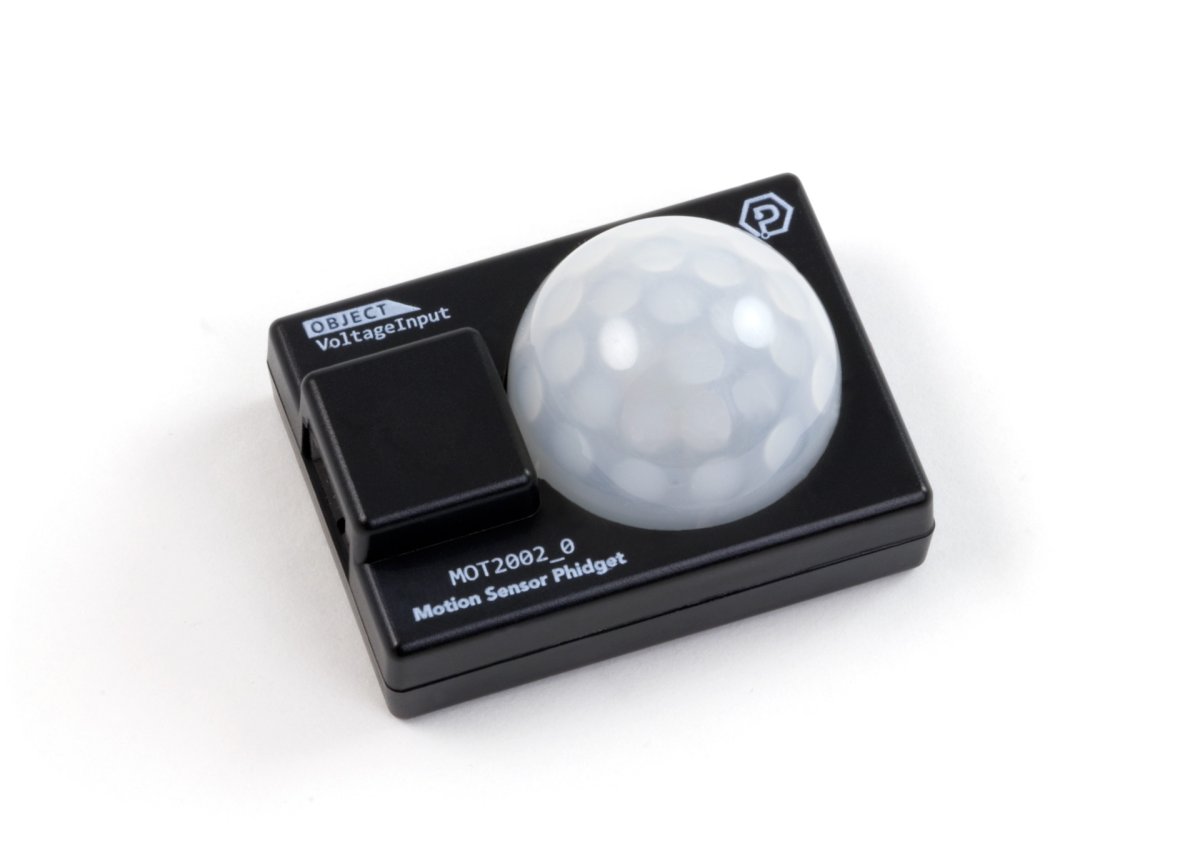

The Motion Sensor Phidget allows you to detect motion up to ten meters away. This sensor will output a steady voltage when no objects are detected. The voltage output will increase or decrease when motion is detected. Movement that fills more of the sensor’s field of view will result in a larger change in voltage.

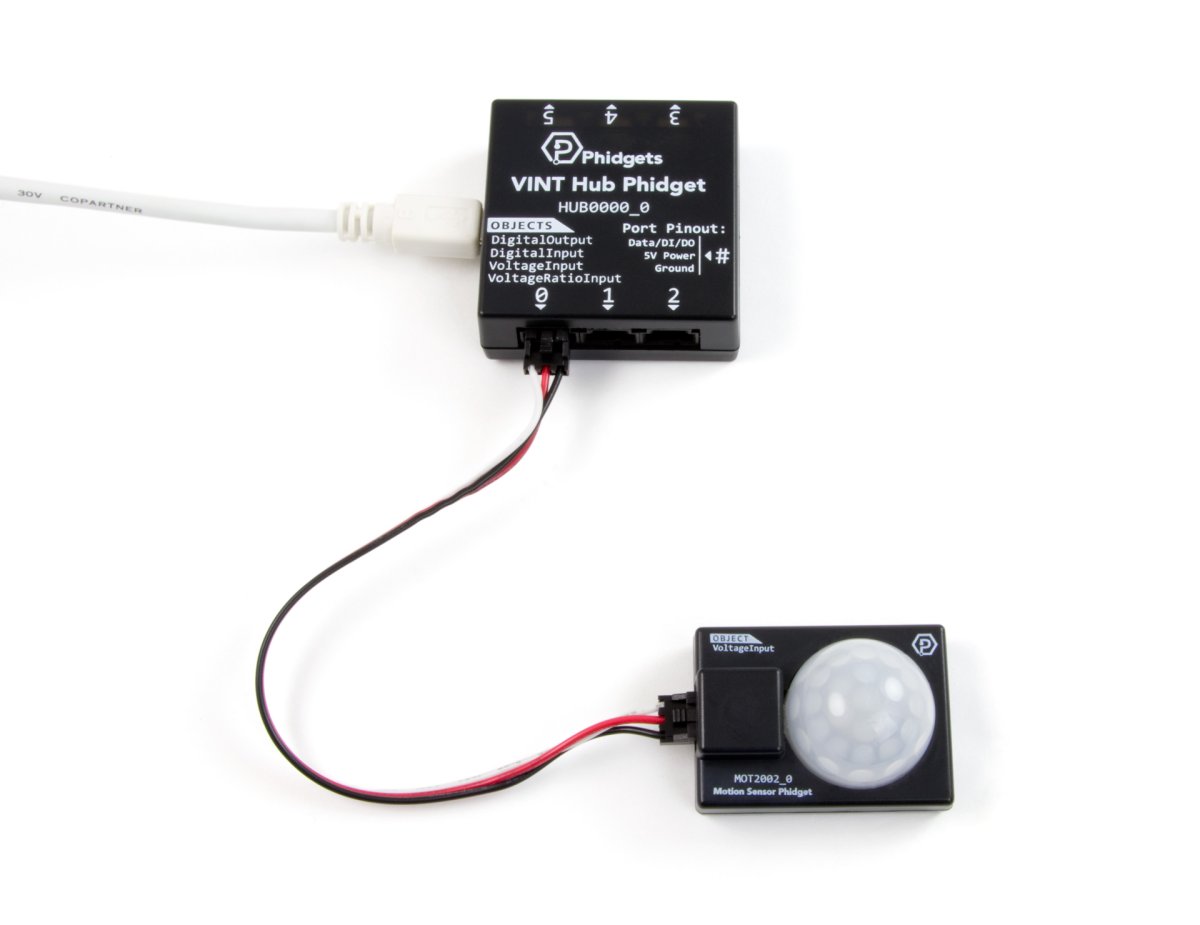

This Phidget connects to your computer through a VINT Hub.
This sensor automatically re-calibrates, so objects that stop moving inside the sensor’s view won’t trigger the sensor until they start moving again.
Features
- Detects motion up to 10m away by sensing infrared emissions
- Useful for detecting the presence of people or animals
- 70 degree field of view
- Automatic re-calibration
Product Specifications
| Sensor Properties | |
|---|---|
| Controlled By | Voltage Input |
| Sensor Output Type | Non-Ratiometric |
| Sensor Type | Motion (PIR) |
| Motion Sensor | |
| Horizontal Detection Range | 70° |
| Vertical Detection Range | * 70° |
| Motion Detection Distance | ** 10 m |
| Electrical Properties | |
| Current Consumption | 140 μA |
| Physical Properties | |
| Operating Temperature Min | -30 °C |
| Operating Temperature Max | 85 °C |
| Customs Information | |
| Canadian HS Export Code | 8473.30.00 |
| American HTS Import Code | 8473.30.11.80 |
| Country of Origin | CN (China) |
* - Detection angle is reduced on the side of the lens where the connector blocks its view:
** - Detection distance varies with the size and speed of the object. Our testing was conducted with people moving at walking speed.
Documents
Product History
| Date | Board Revision | Device Version | Comment |
|---|---|---|---|
| February 2020 | 0 | N/A | Product Release |
