mid-70 Wider Viewing Angle, Smaller Blind Zone

Please inform me as soon as the product is available again.

₹ 1,65,999.00 *

Prices incl. GST

Out of Stock.

Product Code: Livox-Mid-70

The Mid-70 is another component adding to the overall market appeal for Livox with tailored use...more

Close menu

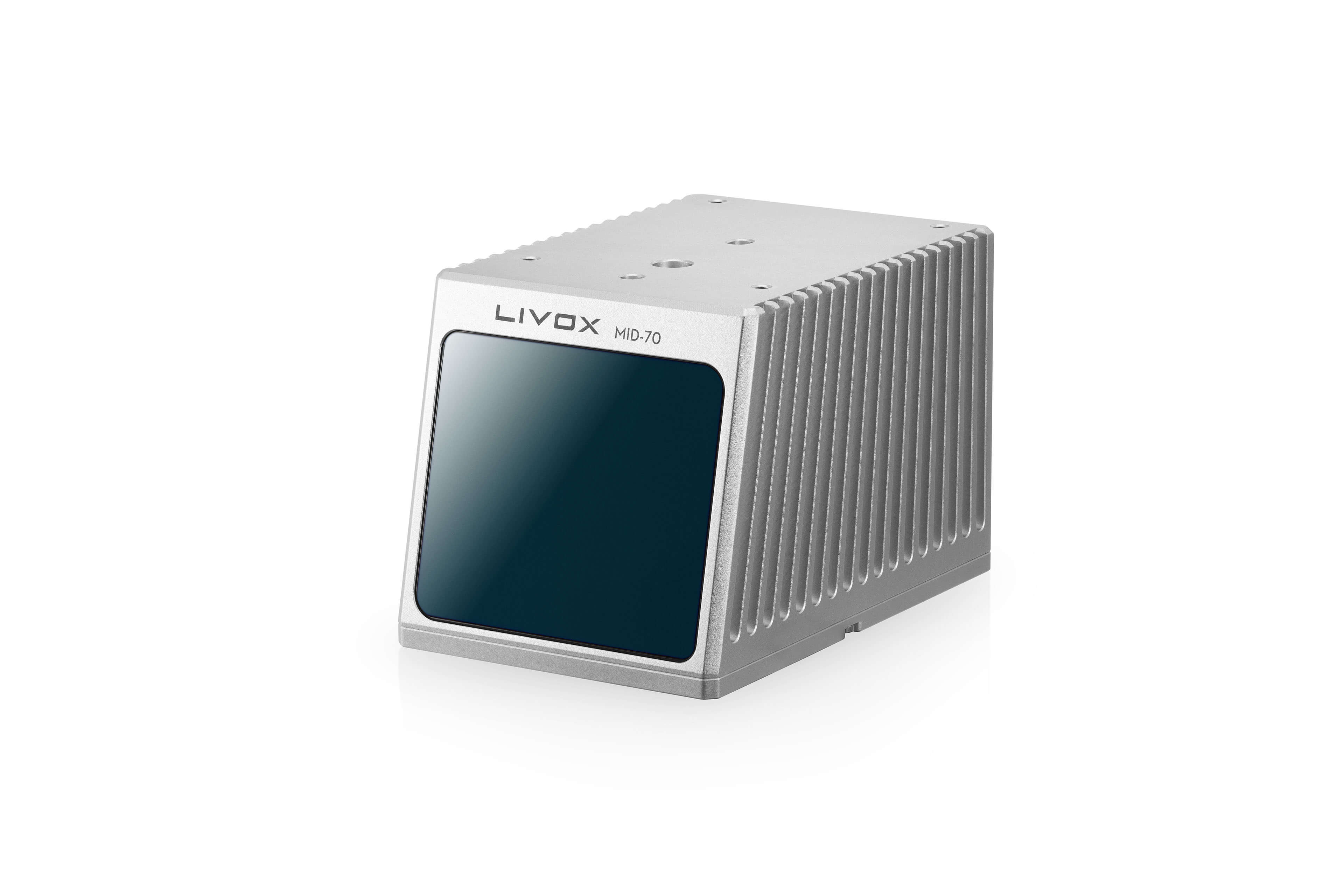

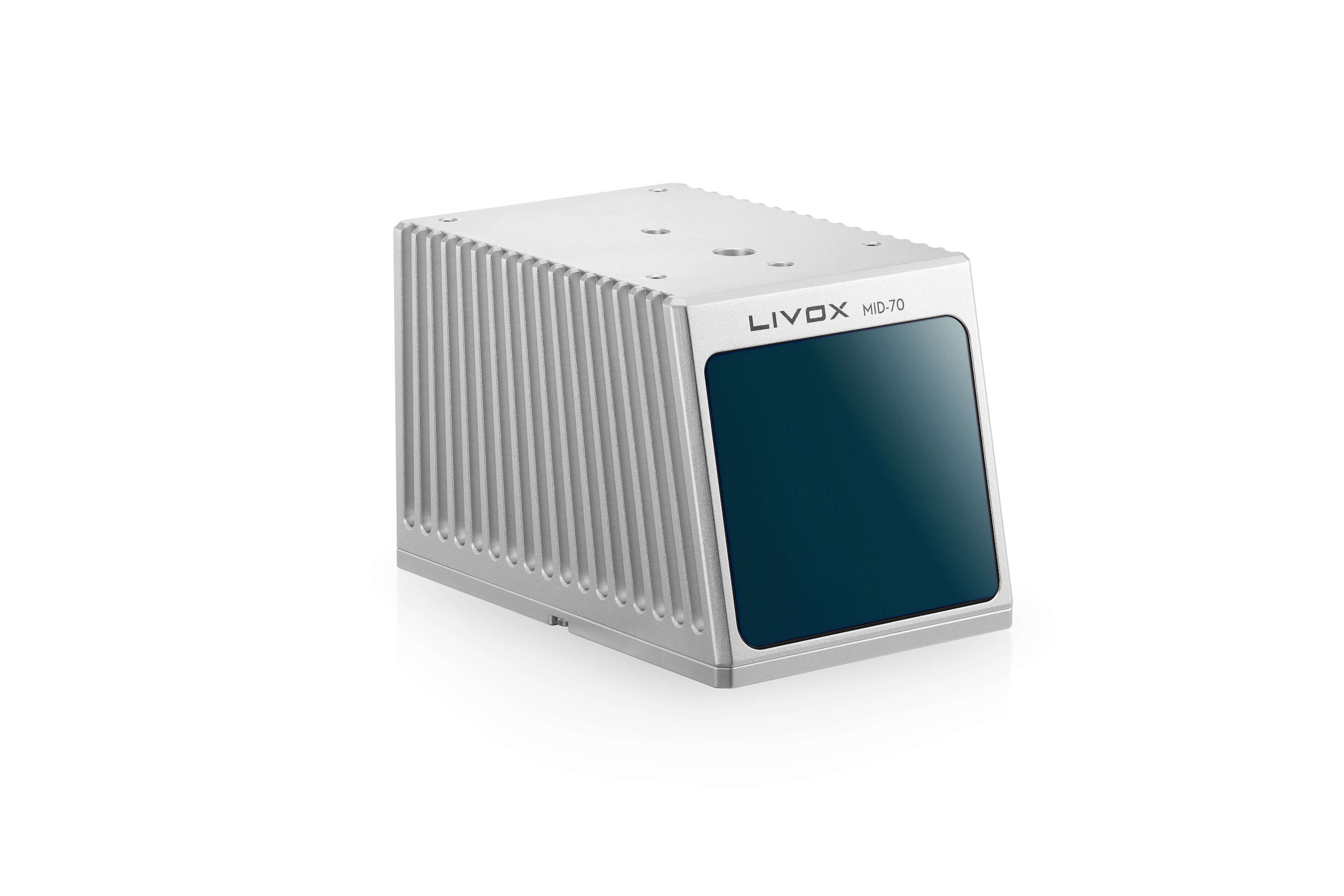

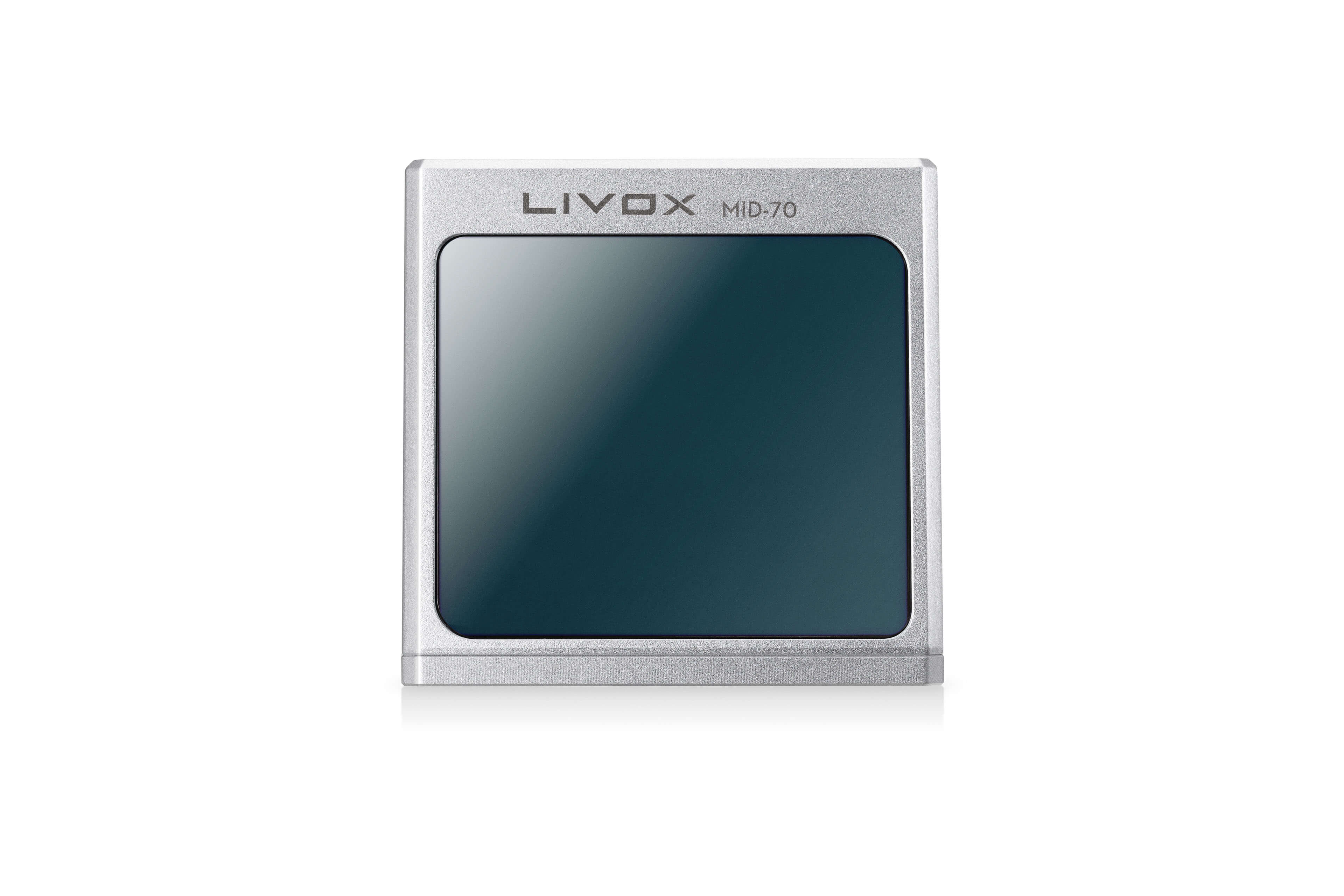

Product information "Livox Mid-70 LiDAR Sensor"

The Mid-70 is another component adding to the overall market appeal for Livox with tailored use applications such as low-speed autonomous driving and mobile robotics. By significantly expanding the vertical viewing angle, reducing blind spots and increasing close-range precision, the Mid-70 offers a thorough and comprehensive point cloud data quality to ensure safer autonomy.

70.4°

Circular FOV
5 cm

Minimum Detection Range 1
2 cm

Range Precision 2
< 0.1°

Angle Precision

Wider Viewing Angle, Smaller Blind Zone

The Mid-70's circular field of view extends to 70.4° both horizontally and vertically, and the minimum detection range is reduced to only 5 cm. The wider viewing angle and smaller blind zone enables the system to better explore the surrounding environment and efficiently detect and avoid small objects. This advancement in increasing viewing angle while reducing the blind zone opens up the autonomous-driving system to be safely used in a multitude of use applications and places such as airports, malls, hospitals, and other crowded and complex environments.

70° circular viewing angle

5 cm minimum detection range

key::

Enhanced Forward and Side Detection

key::

Two Horizon with Three Mid-70 Units for Enhanced Coverage

test for video desc

Cost Effective

Compared to the current market that primarily uses costly laser emitters or immature MEMS scanners, the Mid-70 adopts low-cost, high-quality semiconductor components for light generation and detection. The entire optical system, including the scanning units, uses proven and readily available optical components such as those employed in the optical lens industry. All of these factors contribute to an accessible price point of just $1099 for a single unit.

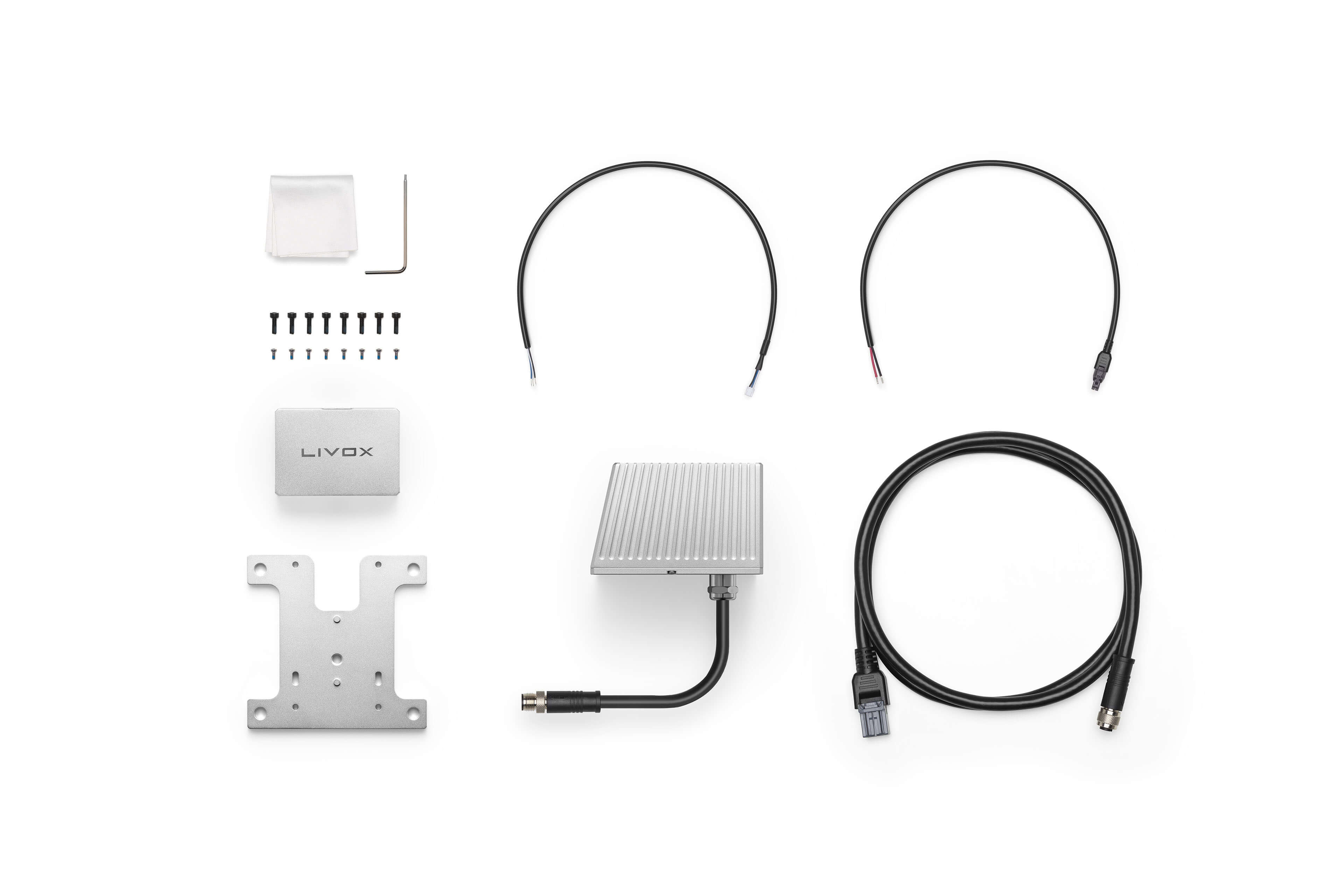

Package Include:

Livox Mid-70 ×1

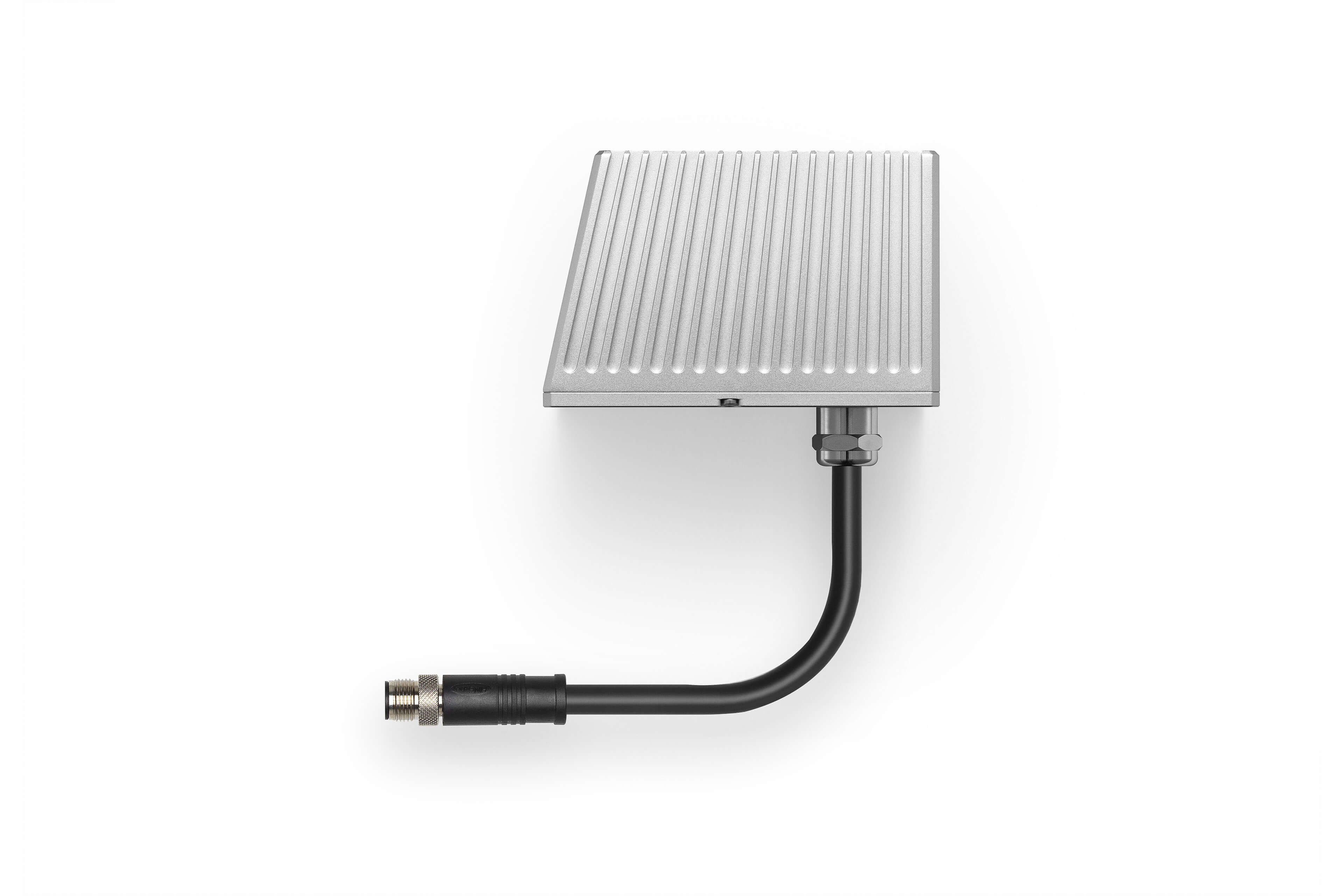

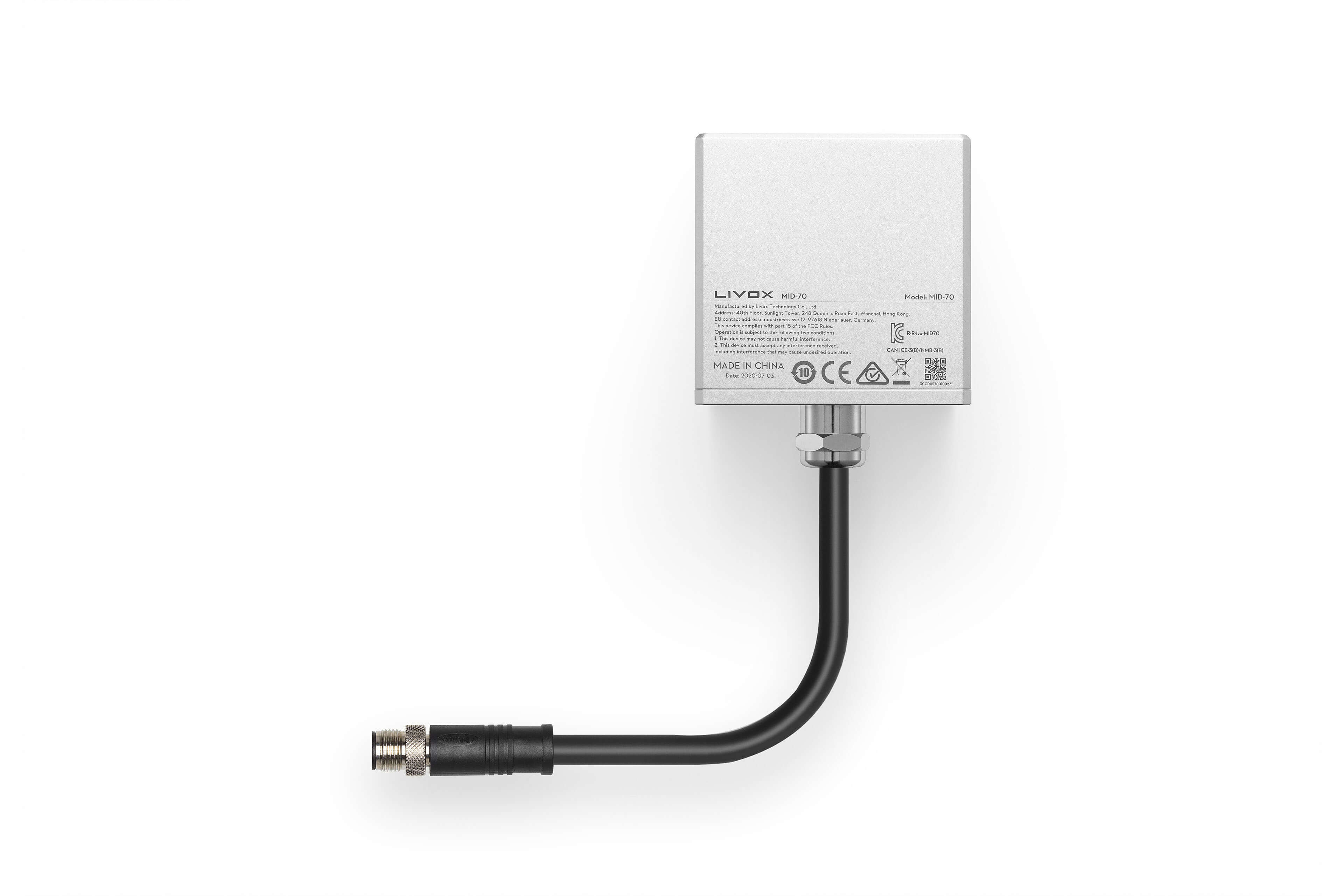

Livox Converter 2.0 ×1
Mounting Bracket ×1
Optical Window Cleaning Cloth ×1
L-shape Hex Screwdriver ×1
Screw Package ×1
Cables Package ×1
