Gravity: I2C LIS331HH Triple Axis Accelerometer Sensor (±6g/±12g/±24g)
Please inform me as soon as the product is available again.
₹ 989.00 *
Prices incl. GST
Out of Stock.
- Product Code: DFR-SEN0411
- MPN: SEN0411
The LIS331HH is a high-performance 3-axis linear accelerometer with an ultra-low power...more
Product information "Gravity: I2C LIS331HH Triple Axis Accelerometer Sensor (±6g/±12g/±24g)"
The LIS331HH is a high-performance 3-axis linear accelerometer with an ultra-low power consumption of 10uA. It offers user-selectable scales of ±6g/±12g/±24g and is capable of measuring accelerations with output data rates from 0.5Hz to 1KHz. The sensor is applicable to fields like navigation, smart agriculture, robotics, VR/AR, etc.
Connection Diagram
FEATURES
- Selectable scales: ±6g/±12g/±24g
- 16-bit data output
- Change I2C address by the toggle switch
- Easy-to-use Gravity interface, no need to solder
APPLICATIONS
- Free-fall detection
- Motion-activated functions
- Gaming and virtual reality input devices
SPECIFICATION
- Operating Voltage: 3.3V~5V
- Operating Current: 10uA(low power mode)/0.3mA(Normal mode)
- Interface: Gravity-I2C
- I2C Address: 0x19 (Default)/0x18 (Optional)
- Selectable Scale: ±6g/±12g/±24g
- Frequency: 0.5Hz~1KHz
- 16-bit Data Output
- Operating Temperature: -40℃~+85℃
- 10000g High Shock Survivability
- ECOPACK, RoHS and “Green” compliant

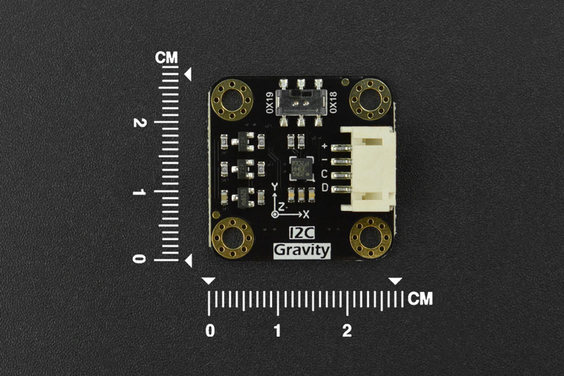

- Module Size: 27*27mm/1.06*1.06”
- Mounting Hole Size: inner diameter 3mm/outer diameter 6mm
SHIPPING LIST

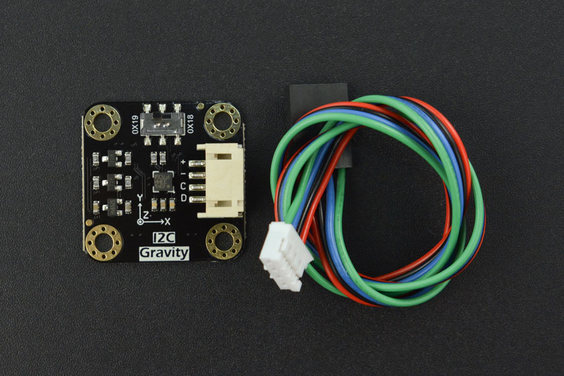

- Gravity: I2C LIS331HH Triple Axis Accelerometer Sensor x1
- Gravity-4P I2C/UART Sensor Connector x1
